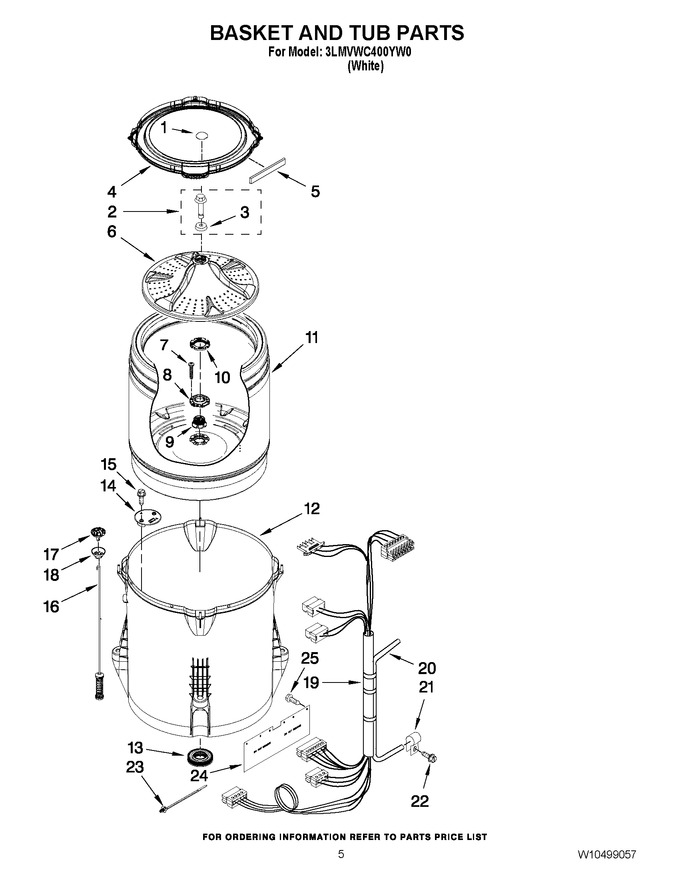

03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10305251 | Cap, Impeller (Replaces: W10305251) |
|
Immediately | $ 22.02 | ||||
| 2 | W10772621 | Screw & Washer Assembly (Replaces: W10003790) |
|
Immediately | $ 5.24 | ||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 4 | W10215146 | Tub Ring (includes Item 5) |
|
$ 84.89 | |||||
| 5 | W10205824 | Absorber, Impact |
|
$ 76.80 | |||||
| 6 | WPW10553968 | Impeller (washplate) (Replaces: W10215119) |
|
$ 297.90 | |||||
| 7 | WP8533953 | Screw (Replaces: 8533953) |
|
Immediately | $ 7.19 | ||||
| 8 | W10324651 | Hub - Driven, Basket (includes Items 7, 9 & 10) (Replaces: W10291415) |
|
Immediately | $ 104.65 | ||||
| 9 | W10324651 | Block, Basket Drive (includes Items 7, 8 & 10) (Replaces: W10291416) |
|
Immediately | $ 104.65 | ||||
| 10 | W10324651 | Nut, Spanner (includes Items 7, 8 & 9) (Replaces: W10291417) |
|
Immediately | $ 104.65 | ||||
| 11 | W10324650 | Basket Assembly (includes Items 7, 8, 9 & 10) (Replaces: W10238268) |
|
Immediately | $ 461.78 | ||||
| 12 | W10324648 | Tub (includes Item 13) (Replaces: W10238301) |
|
$ 344.62 | |||||
| 13 | W10324647 | Seal, Tub (Replaces: W10006371) |
|
Immediately | $ 93.50 | ||||
| 14 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 62.15 | |||||
| 15 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.82 | ||||
| 16 | W10780051 | Damper Assembly, Tub Suspension (set Of 4-includes Items 17 & 18) (Replaces: W10257085) |
|
Immediately | $ 237.11 | ||||
| 17 | W10405423 | Ball, Suspension (set Of 4 - Includes Item 18) |
|
- | |||||
| 18 | W10256551 | Bushing, Suspension (set Of 4 - Includes Item 17) |
|
- | |||||
| 19 | W10268821 | Harness, Lower (includes Items 20 & 23) |
|
$ 113.85 | |||||
| 20 | WP353244 | Hose, Pressure Switch (Replaces: W10297437) |
|
Immediately | $ 59.93 | ||||
| 21 | W10005430 | Clamp, Pressure Hose Retainer |
|
Immediately | $ 9.08 | ||||
| 22 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.00 | ||||
| 23 | WPW10298887 | Cable Tie (Replaces: W10298887) |
|
$ 7.60 | |||||
| 24 | W10392691 | Shield, Splash |
|
- | |||||
| 25 | W10429200 | Retainer, Push In |
|
- |
