SELECT A DIAGRAM

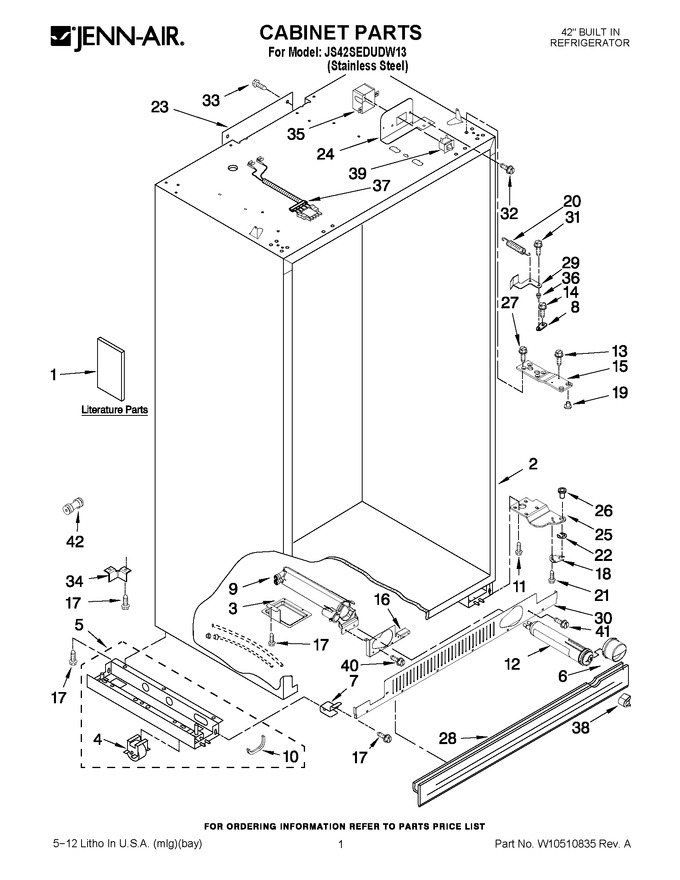

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Shelf Parts


06 - Top Grille And Unit Cover Parts


07 - Freezer Liner And Air Flow Parts


08 - Refrigerator Door Parts


09 - Freezer Door Parts


10 - Dispenser Front Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts


14 - Motor And Ice Container Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10303988		Use & Care Guide		Appelez-nous	-
1	W10482116		Energy Guide		Appelez-nous	-
1	W10483315		Service & Wiring Sheet		Appelez-nous	-
1	2306424		Icemaker And Ingredient Care Center Service Sheet		Appelez-nous	-
1	W10469184		Main Control Service Sheet		Appelez-nous	-
1	W10379134		Installation Instructions		Appelez-nous	-
2	N/P		Cabinet (not Serviced)		Appelez-nous	-
3	2318189		Tray, Drip Filter				$ 148.73
4	WPW10138054		Roller Assembly, Front & Rear   (Replaces: W10138054)				$ 45.34
5	W10860448		Support, Base Assy (right Side)   (Replaces: W10138423)			Immediately	$ 383.00
5	W10860229		Support, Base Assy (left Side)   (Replaces: W10279275)				$ 381.83
6	WP2260518B		Cap, Water Filter   (Replaces: 2260518B)			Immediately	$ 28.26
7	W10839844		Mounting Bracket, Grille   (Replaces: 2307640)				$ 43.26
8	2005783		Cam, Door Closer				$ 26.20
9	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 171.96
10	2307584		Grommet, Crossover Tube (left Side)				$ 23.40
11	3400525		Screw				$ 12.83
12	EDR3RXD1B		Filter, Water   (Replaces: 4396841)			Immediately	$ 49.99
13	WP8281164		Screw   (Replaces: 8281164)				$ 11.33
14	WP8281227		Screw   (Replaces: W10189203)				$ 10.96
15	2257644		Hinge (top)				$ 177.98
16	W11755873		Mounting Bracket, Filter   (Replaces: W10348782)				$ 80.33
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
18	WP2004994		Lock, Adjustable Bushing   (Replaces: 2004994)			Immediately	$ 8.39
19	2300082		Bushing				$ 13.44
20	W11805224		Door Closer Spring   (Replaces: 2221242)		Appelez-nous	-
21	W11769878		Screw   (Replaces: 3400230)				$ 12.77
22	WP489236		Retaining Ring, Adjustable Bushing   (Replaces: 2005008)			Immediately	$ 12.78
23	2215612		Cover, Air Duct		Appelez-nous	-
24	W10741111		Bracket, Switch (right Side)   (Replaces: 2221097)				$ 67.37
24	2221096		Bracket, Switch (left Side)				$ 97.86
25	WP2006780		Hinge, Bottom (left Side)   (Replaces: 2006780)				$ 299.33
25	W10527053		Hinge, Bottom (right Side)   (Replaces: 2006779)				$ 137.73
26	WP2302876		Adjustable Bushing   (Replaces: 2302876)			Immediately	$ 90.72
27	W11721628		Screw   (Replaces: 8533913)			Immediately	$ 14.78
28	2209025B		Grille Skirt, Bottom				$ 48.90
29	W10847927		Extension Arm (right Side)   (Replaces: 2266882)				$ 99.91
29	W11298172		Extension Arm (left Side)   (Replaces: 2266881)			Immediately	$ 87.43
30	2325185B		Grille Base, Bottom				$ 78.44
31	W11177574		Screw   (Replaces: W10004850)				$ 14.84
32	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
33	WP1163283		Screw   (Replaces: 1163283)				$ 7.55
34	2006617		Bracket, Support Base (rear)		Appelez-nous	-
35	2215938		Cover, Switch				$ 94.78
36	WP2316859		Bushing, Extension Arm   (Replaces: 2316859)			Immediately	$ 54.20
37	W10167456		Wire Assembly, Light Switch		Appelez-nous	-
38	WP2260503B		Button, Filter   (Replaces: 2260503B)				$ 76.42
39	W11457217		Switch, Rocker Arm (left Side)   (Replaces: 1115373)				$ 40.09
39	W11384469		Switch, Rocker Arm (right Side)   (Replaces: 1118894)			Immediately	$ 39.09
40	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
41	WP489464		Screw   (Replaces: W10005050)			Immediately	$ 8.38
42	WP2300868		Connector, Water Tube   (Replaces: W10271541)			Immediately	$ 29.05

    View Diagram in Separate Window       Print Part List
