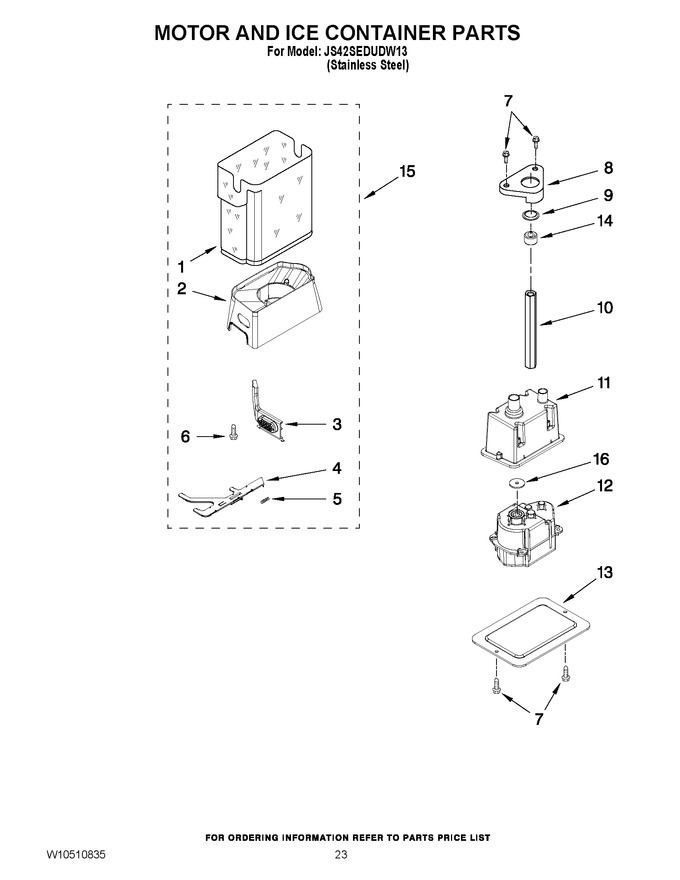

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2222965 | Ice Bin (Replaces: 2222965) |
|
$ 227.45 | |||||
| 2 | W10151247 | Crusher Bin |
|
$ 121.94 | |||||
| 3 | 2266800 | Button, Bin |
|
$ 75.27 | |||||
| 4 | W10134783 | Latch, Bin |
|
$ 105.17 | |||||
| 5 | WP2198608 | Spring, Latch (Replaces: 2198608) |
|
$ 7.55 | |||||
| 6 | 2198671 | Screw |
|
$ 10.92 | |||||
| 7 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 8 | WP2188919 | Clip, Shaft (Replaces: 2188919) |
|
$ 7.55 | |||||
| 9 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 12.57 | ||||
| 10 | W11841865 | Drive Shaft (Replaces: 2318030) |
|
Immediately | $ 115.26 | ||||
| 11 | W11404931 | Enclosure, Motor (Replaces: 2318011) |
|
Immediately | $ 68.51 | ||||
| 12 | 2315547 | Dispenser, Motor |
|
- | |||||
| 13 | 2318028 | Cover |
|
$ 107.79 | |||||
| 14 | WP2315559 | Sleeve, Coupling (Replaces: 2315559) |
|
Immediately | $ 85.41 | ||||
| 15 | WPW10395653 | Ice Container Assembly (Replaces: W10395653) |
|
$ 377.51 | |||||
| 16 | WPW10254073 | Washer, Rubber (Replaces: W10254073) |
|
Immediately | $ 10.61 |
