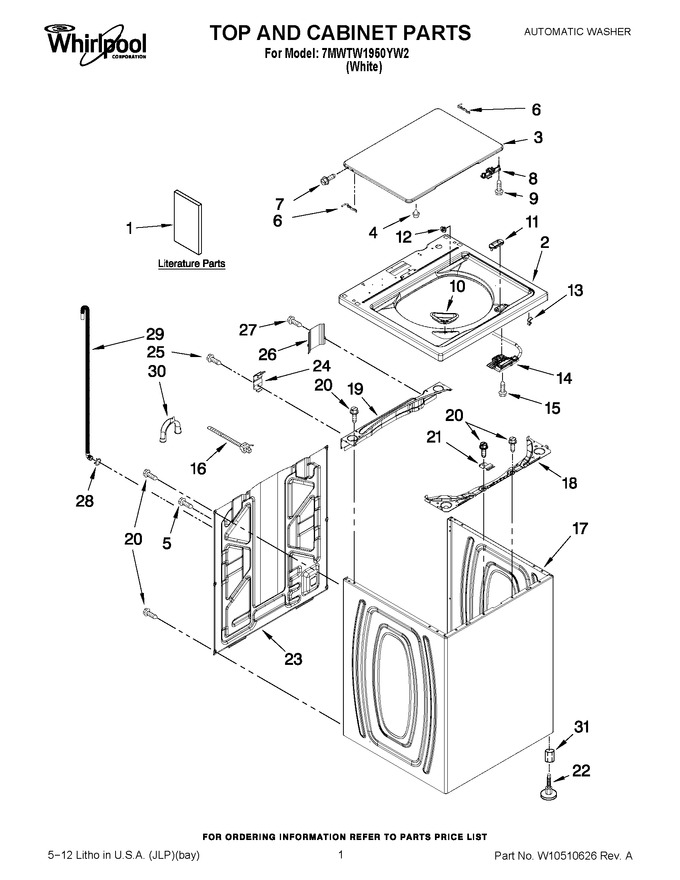

01 - Top And Cabinet Parts
02 - Console And Water Inlet Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10478095 | Installation Instructions |
|
- | |||||
| 1 | W10366291 | Energy Guide |
|
- | |||||
| 1 | W10366274 | Quick Start Guide |
|
- | |||||
| 1 | W10468340 | Tech Sheet |
|
- | |||||
| 1 | W10366277 | Use & Care Guide |
|
- | |||||
| 2 | WPW10251319 | Top (Replaces: W10251319) |
|
$ 327.21 | |||||
| 3 | W10860912 | Lid (includes Item 4) (Replaces: W10027624) |
|
$ 369.59 | |||||
| 4 | WP9724509 | Bumper, Lid (Replaces: 9724509) |
|
Immediately | $ 7.93 | ||||
| 5 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 6 | WP91770 | Hinge, Lid (Replaces: 91770) |
|
$ 27.45 | |||||
| 7 | WPW10119828 | Screw, Lid Hinge (Replaces: W10119872) |
|
Immediately | $ 7.19 | ||||
| 8 | WPW10240513 | Strike, Lid Lock (Replaces: W10240513) |
|
Immediately | $ 39.57 | ||||
| 9 | WPW10273971 | Screw, 6-19 X 1/2 (Replaces: W10273971) |
|
Immediately | $ 7.19 | ||||
| 10 | WPW10192089 | Dispenser, Bleach (Replaces: W10192089) |
|
Immediately | $ 7.96 | ||||
| 11 | WPW10392041 | Bezel, Lid Lock (Replaces: W10392041) |
|
Immediately | $ 7.62 | ||||
| 12 | WP21258 | Bearing, Lid Hinge (Replaces: 21258) |
|
Immediately | $ 7.63 | ||||
| 13 | WP90016 | Clip, Lid Lock Harness (Replaces: 90016) |
|
$ 11.32 | |||||
| 14 | W10404050 | Latch, Lid Lock Assembly (Replaces: W10238287) |
|
Immediately | $ 81.88 | ||||
| 15 | WP8281163 | Screw 8-16 X 1/2 (Replaces: 8281163) |
|
Immediately | $ 10.19 | ||||
| 16 | WPW10339879 | Cable Tie (Replaces: W10339879) |
|
$ 7.90 | |||||
| 17 | W10596395 | Cabinet (includes Items 18, 19, 20 & 22) (Replaces: W10251994) |
|
$ 458.85 | |||||
| 18 | W11695476 | Brace, Cabinet Top Front (Replaces: W10215098) |
|
$ 75.99 | |||||
| 19 | W11712680 | Brace, Cabinet Top Rear (Replaces: W10215099) |
|
$ 98.93 | |||||
| 20 | WP489069 | Screw, 8-18 X 3/8 (Replaces: 1157158) |
|
Immediately | $ 7.86 | ||||
| 21 | WPW10248088 | Lock, Top (Replaces: W10248088) |
|
$ 17.93 | |||||
| 22 | W10739673 | Foot Assembly, Leveling (Replaces: W10397767) |
|
$ 13.65 | |||||
| 23 | W11486091 | Panel Rear (Replaces: W10250884) |
|
Immediately | $ 312.11 | ||||
| 24 | W10432012 | Hinge, Top (Replaces: W10215102) |
|
$ 85.20 | |||||
| 25 | WP489128 | Screw, 8-32 X 3/8 (Replaces: W10142728) |
|
$ 10.88 | |||||
| 26 | W10676061 | Cover, Harness (Replaces: W10215139) |
|
$ 35.02 | |||||
| 27 | W10846509 | Screw, 10-23 X 5/8 (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 28 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 29 | W11244231 | Hose, Outer Drain Assembly (includes Items 28 & 30) (Replaces: W10221546) |
|
Immediately | $ 32.07 | ||||
| 30 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 79.53 | |||||
| 31 | WP3359452 | Nut, Locking (Replaces: 3359452) |
|
Immediately | $ 7.19 |
