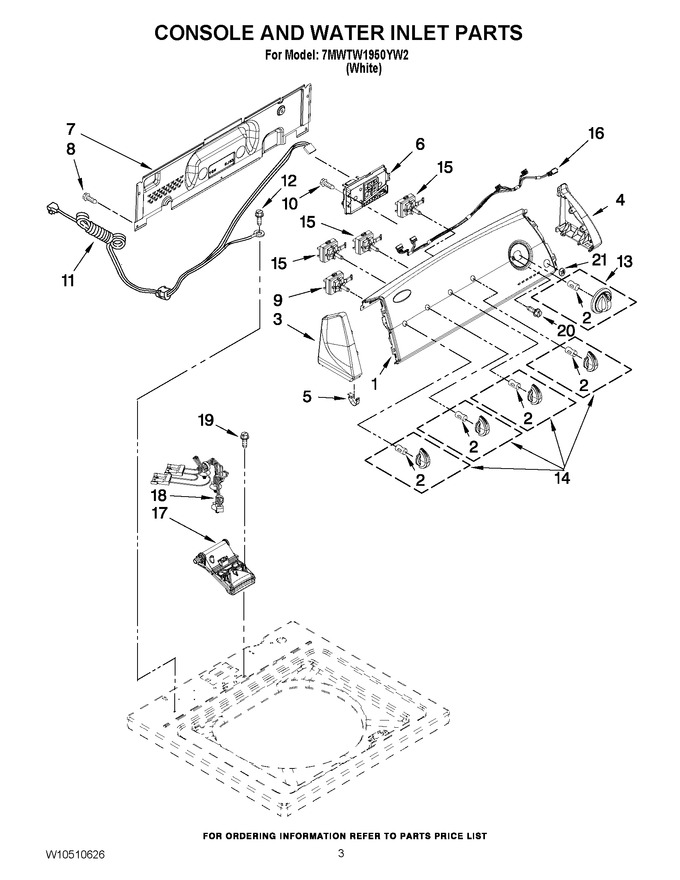

01 - Top And Cabinet Parts


02 - Console And Water Inlet Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10363998		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 8.20
3	WP8565957		Cap, End (l.h.) (includes Item 5)   (Replaces: 8566035)				$ 64.76
4	WP8565954		Cap, End (r.h.) (includes Item 5)   (Replaces: 8566032)				$ 65.84
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10445855		Control Unit Assembly, Machine & Motor		Appelez-nous	-
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 360.43
8	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 8.40
9	WPW10285512		Switch, Rotary Encoder   (Replaces: W10285512)			Immediately	$ 190.47
10	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
11	WPW10525194		Cord, Power   (Replaces: W10276649)				$ 163.41
12	W10846509		Screw, Power Cord Ground   (Replaces: 3400076)			Immediately	$ 8.20
13	W10034750		Knob, Timer				$ 28.27
14	W10034380		Knob, Control				$ 25.06
15	WPW10285511		Switch, Rotary Encoder   (Replaces: W10285511)			Immediately	$ 182.10
16	WPW10291176		Harness, Upper   (Replaces: W10291176)				$ 173.29
17	WPW10683653		Inlet Assembly, Water   (Replaces: W10472844)				$ 216.49
18	W10876654		Valve, Water Mixing   (Replaces: W10423127)				$ 194.92
19	WP8281163		Screw 8-16 X 1/2   (Replaces: 8281163)			Immediately	$ 10.70
20	WP3400818		Screw, 8-18 X .20   (Replaces: 3400818)				$ 8.81
21	WPW10251309		Pushbutton, Start   (Replaces: W10251309)			Immediately	$ 76.00
