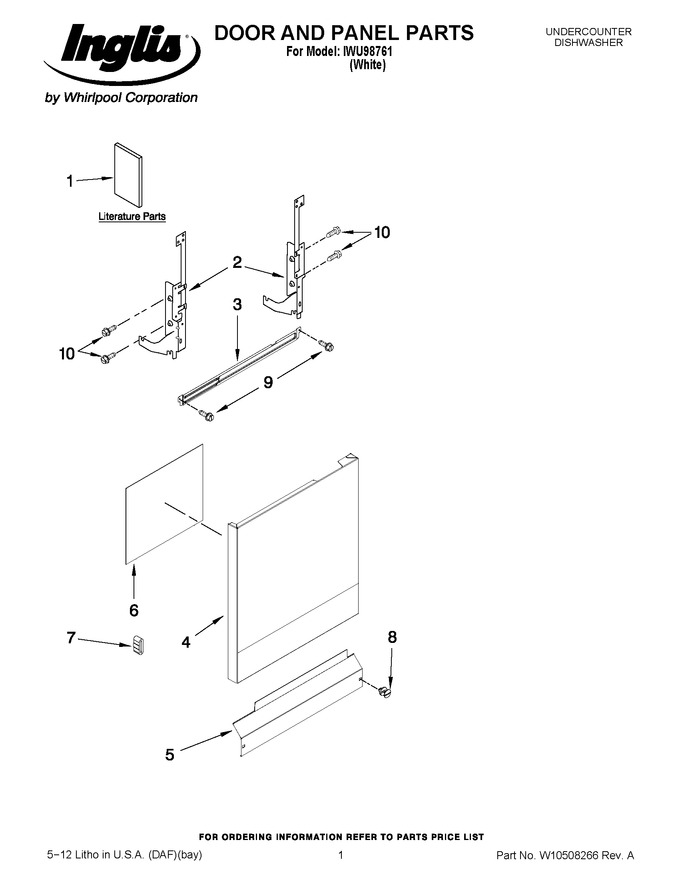

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10475842 | Tech Sheet (french) |
|
- | |||||
| 1 | W10435040 | Installation, Instructions |
|
- | |||||
| 1 | W10490709 | Energy Guide |
|
- | |||||
| 1 | W10380253 | Use & Care Guide |
|
- | |||||
| 1 | W10321977 | Tech Sheet (english) |
|
- | |||||
| 2 | W11613572 | Arm, Hinge (right) (Replaces: W10274921) |
|
Immediately | $ 83.93 | ||||
| 2 | W11806566 | Arm, Hinge (left) (Replaces: W10274922) |
|
Immediately | $ 71.77 | ||||
| 3 | W10850371 | Stiffener, Door (Replaces: W10195120) |
|
Immediately | $ 32.88 | ||||
| 4 | WPW10274896 | Panel Front (Replaces: W10274896) |
|
$ 362.51 | |||||
| 5 | WPW10441007 | Access Panel (Replaces: W10441007) |
|
$ 170.94 | |||||
| 6 | WPW10073520 | Insulation, Door Panel (Replaces: W10073520) |
|
$ 96.23 | |||||
| 7 | WP8268961 | Friction Sleeve (Replaces: 8268961) |
|
Immediately | $ 5.93 | ||||
| 8 | WPW10503549 | Fastener (Replaces: W10331793) |
|
Immediately | $ 7.77 | ||||
| 9 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 10 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.80 |
