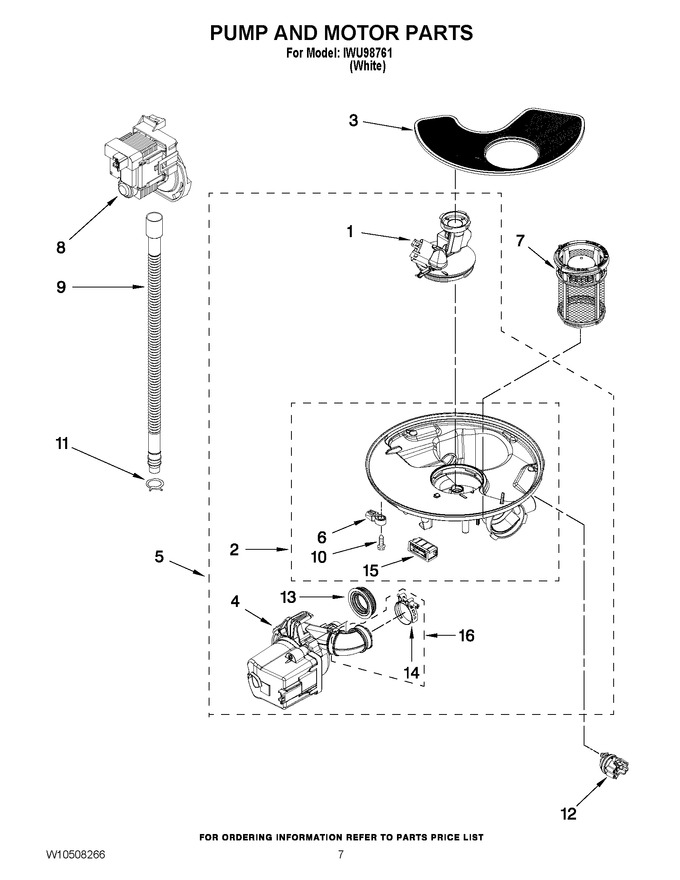

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10455271 | Cover, Outlet (Replaces: W10455271) |
|
Immediately | $ 20.09 | ||||
| 2 | WPW10482462 | Sump With Seal (Replaces: W10482462) |
|
Immediately | $ 274.06 | ||||
| 3 | WPW10463906 | Screen (Replaces: W10463906) |
|
Immediately | $ 36.35 | ||||
| 4 | W11133712 | Motor (also Order Items 13 & 16) (Replaces: W10440714) |
|
Immediately | $ 367.26 | ||||
| 5 | WPW10605059 | Sump & Motor Assembly (Replaces: W10482480) |
|
Immediately | $ 375.85 | ||||
| 6 | WPW10372113 | Tab, Sump (Replaces: W10372113) |
|
Immediately | $ 29.36 | ||||
| 7 | W10872845 | Filter Cup, Assy (Replaces: W10393352) |
|
Immediately | $ 55.08 | ||||
| 8 | WPW10348269 | Pump, Drain (Replaces: 8558995) |
|
Immediately | $ 97.46 | ||||
| 9 | 8269144A | Hose, Drain (Replaces: 8269144) |
|
Immediately | $ 29.04 | ||||
| 10 | WPW10348407 | Screw (Replaces: W10348407) |
|
$ 8.06 | |||||
| 11 | WP285655 | Clamp, Hose (Replaces: 370445) |
|
Immediately | $ 8.81 | ||||
| 12 | WPW10705575 | Optical Water Indicator (Replaces: W10134017) |
|
Immediately | $ 43.81 | ||||
| 13 | WPW10538166 | Grommet (Replaces: W10195068) |
|
Immediately | $ 44.37 | ||||
| 14 | W10789434 | Clamp (Replaces: W10169167) |
|
Immediately | $ 14.40 | ||||
| 15 | W11243394 | Motor, Isolator (Replaces: W10195086) |
|
$ 14.57 | |||||
| 16 | W10445975 | Hose Assembly (includes 2 Clamps) |
|
Immediately | $ 85.38 |
