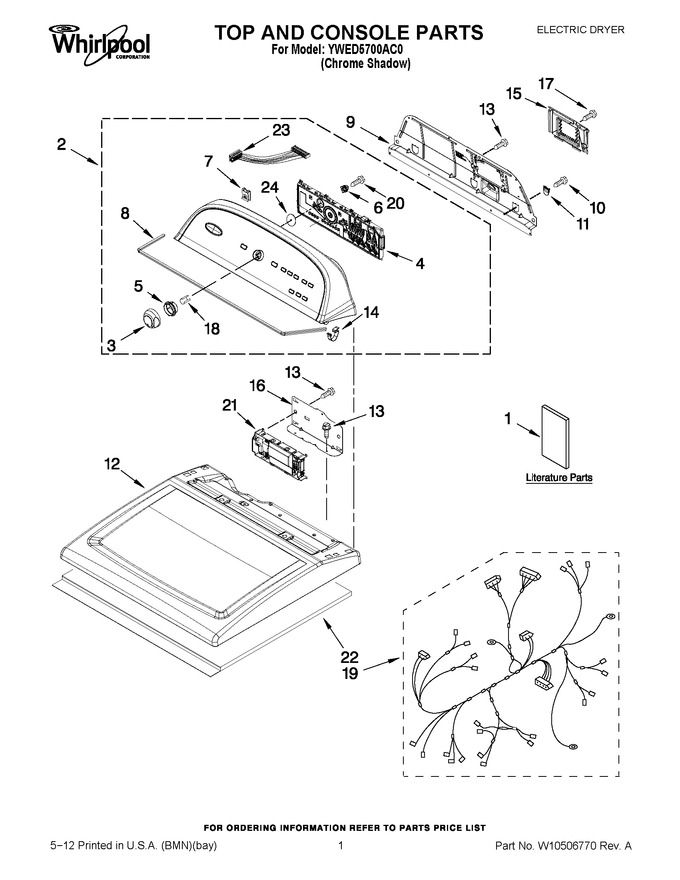

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10115228		Installation, Instructions		Appelez-nous	-
1	W10097053		Guide, Use & Care		Appelez-nous	-
1	W10417013		Tech Sheet		Appelez-nous	-
2	W10458788		Console Assembly (complete)				$ 485.64
3	WPW10251394		Knob, Assembly (silver)   (Replaces: W10251394)				$ 55.94
4	WPW10269626		User Interface Assembly   (Replaces: W10269626)			Immediately	$ 313.29
5	W10325119		Spacer, Knob		Appelez-nous	-
6	W10274524		Tensioner Fascia		Appelez-nous	-
7	W11213336		Nut, 8-18 U-type   (Replaces: W10298336)				$ 8.13
8	W10280079		Seal, Console		Appelez-nous	-
9	W10096969		Panel, Rear				$ 197.80
10	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
11	W10279552		Plug-upper Rear Panel		Appelez-nous	-
12	W11641122		Top   (Replaces: W10458665)				$ 268.82
13	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 134.77
16	W10271580		Bracket, Motor Control		Appelez-nous	-
17	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 8.25
18	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
19	W10287254		Harness, Electric		Appelez-nous	-
20	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
21	WPW10214008		Ccu-control   (Replaces: W10214008)				$ 400.65
22	W10323092		Seal, Ui		Appelez-nous	-
23	W10285494		Cable, User Interface		Appelez-nous	-
24	W10123956		Dampening Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
