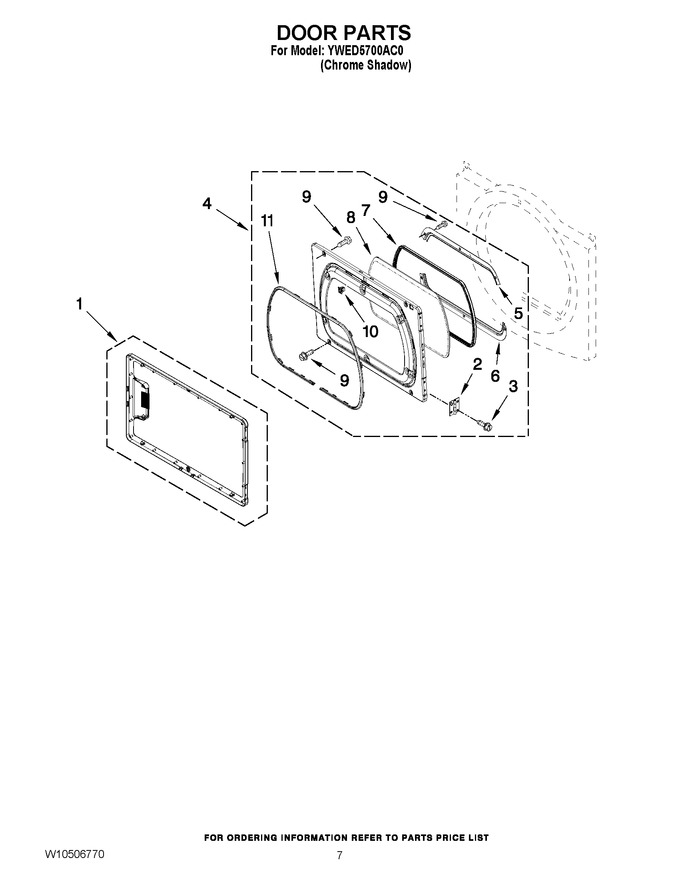

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10459655		Outer Door Assembly				$ 211.69
2	W11175815		Hinge & Pin Assembly   (Replaces: 3389247)				$ 85.48
3	WP488627		Screw   (Replaces: 342055)				$ 8.11
4	W11652037		Inner Door Assembly   (Replaces: W10284132)				$ 208.90
5	W10284119		Retainer, Glass Upper		Appelez-nous	-
6	W10284120		Retainer, Glass Lower		Appelez-nous	-
7	W11676508		Seal, Window   (Replaces: W10284122)				$ 28.37
8	WPW10284121		Door, Glass   (Replaces: W10284121)				$ 263.61
9	WP3373329		Screw   (Replaces: 3393258)				$ 8.52
10	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.89
11	WPW10354795		Seal-door   (Replaces: W10354795)				$ 130.12

    View Diagram in Separate Window       Print Part List
