SELECT A DIAGRAM

01 - Top And Console Parts

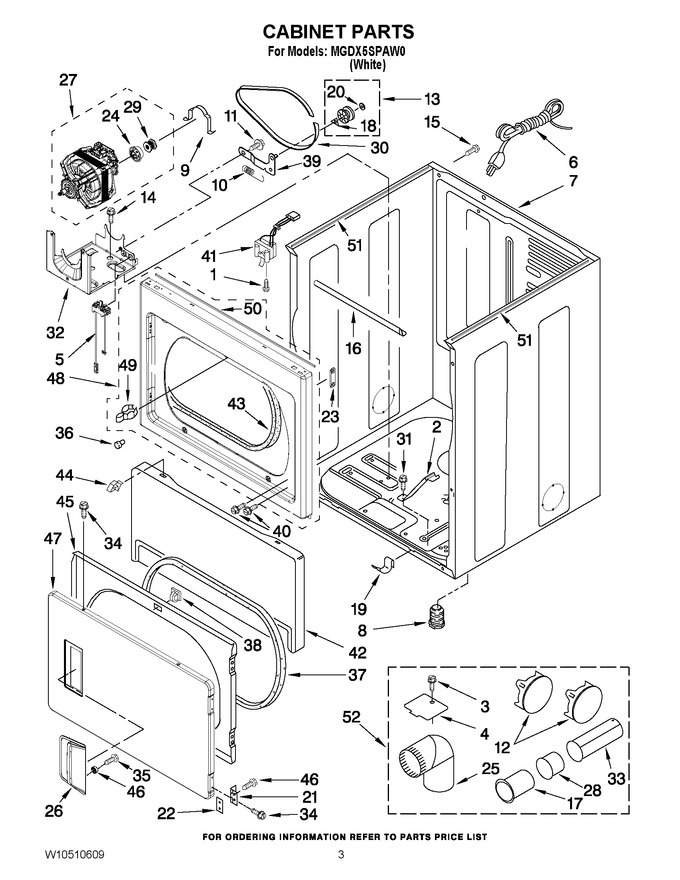

02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10293911 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 7.70
2	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
3	WP488729		Screw   (Replaces: 488729)			Immediately	$ 7.79
4	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 8.96
5	W10847984		Switch, Broken Belt   (Replaces: W10411936)			Immediately	$ 26.90
6	W11222083		Cord, Power   (Replaces: W10440460)				$ 120.59
7	W11417441		Cabinet   (Replaces: 8310656)				$ 419.21
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor   (Replaces: W10121316)			Immediately	$ 25.68
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
12	WPW10404617		Plug, Multivent   (Replaces: W10404617)				$ 71.98
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
15	W10850756		Screw, Ground   (Replaces: 8533974)				$ 7.76
16	W10236068		Bracket, Cabinet				$ 24.47
17	WP8563747		Exhaust Pipe   (Replaces: 8563747)				$ 91.38
18	WPW10512946		Tri Ring   (Replaces: 690997)			Immediately	$ 8.80
19	WPW10291934		Clip   (Replaces: W10291934)				$ 7.75
20	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.19
21	W11175815		Hinge & Pin Assembly   (Replaces: 3389247)				$ 81.41
22	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 11.11
23	W10191265		Plug, Hinge Screw				$ 44.28
24	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 132.46
25	WPW10416072		4`` - 90° Elbow   (Replaces: 49026)				$ 26.82
26	WPW10284182		Handle, Door   (Replaces: W10284182)			Immediately	$ 94.32
27	WPW10508324		Motor Assembly 60 Hz.   (Replaces: W10396038)			Immediately	$ 326.58
28	WPW10331278		Exhaust Pipe (short)   (Replaces: W10331278)				$ 78.95
29	W10837625		Pulley, Motor   (Replaces: 3389729)			Immediately	$ 12.16
30	WPW10112954		Belt, Drive   (Replaces: W10112954)			Immediately	$ 100.30
31	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
32	W11481730		Bracket, Motor   (Replaces: W10242878)			Immediately	$ 87.83
33	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 88.80
34	WP488627		Screw, 8-18 X 3/8   (Replaces: 342055)				$ 7.57
35	WPW10273971		Screw   (Replaces: W10192860)			Immediately	$ 7.19
36	693152		Bumper				$ 10.96
37	WP3390735		Door Seal   (Replaces: 3390735)				$ 130.60
38	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.89
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
40	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
41	WP3406107		Door Switch Assembly   (Replaces: 3406107)			Immediately	$ 31.20
42	WP3406797		Toe, Panel (includes Item. 36)   (Replaces: 697215)				$ 238.33
43	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
44	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
45	280083		Door, Inner   (Replaces: W10323061)				$ 287.02
46	W10294344		Spacer, Handle				$ 11.78
47	W10322551		Door, Outer				$ 156.74
48	W10115218		Front Panel				$ 321.26
49	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
50	W10312811		Foam Seal				$ 64.50
51	W10336128		Seal, Cabinet				$ 14.36
NI	49621		Foot - Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
NI	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey)   (Replaces: W10186596)			Immediately	$ 76.65

    View Diagram in Separate Window       Print Part List
