SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts

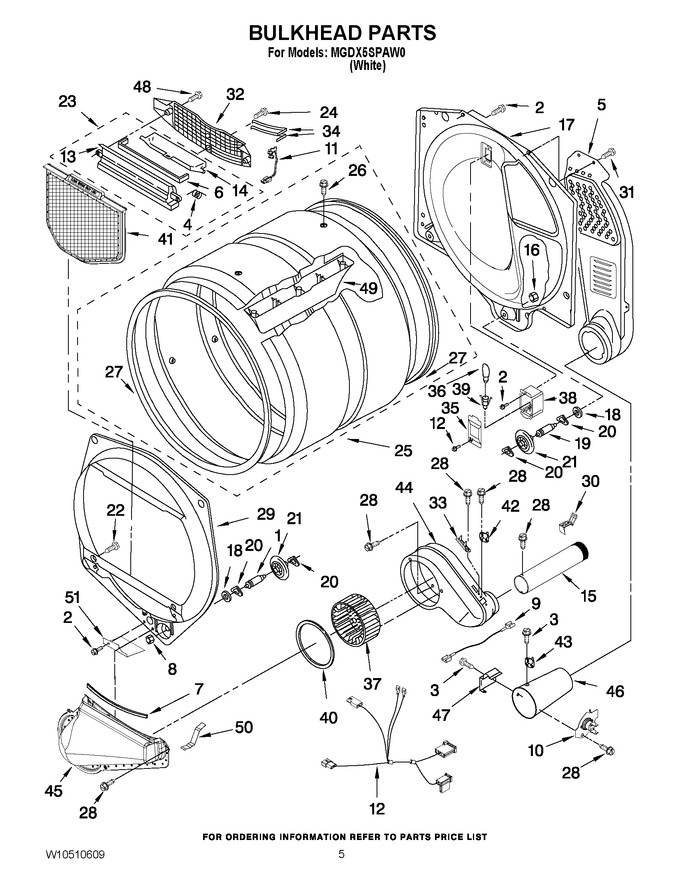

03 - Bulkhead Parts


04 - W10293911 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, R.h. Thread   (Replaces: W10359271)			Immediately	$ 62.21
2	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
3	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.82
4	WP3394986		Spring, Lint Screen Door   (Replaces: 3394986)				$ 84.59
5	WPW10293765		Air Duct Assembly   (Replaces: W10293765)				$ 338.61
6	WP697813		Seal, Outlet Housing   (Replaces: 697813)			Immediately	$ 7.97
7	WP697813		Seal, Drum Front   (Replaces: 697814)			Immediately	$ 7.97
8	W11812294		Nut, 3/8 X 16 (r.h.)   (Replaces: 3934666)				$ 12.16
9	WP3401707		Jumper, Tco Hi-limit   (Replaces: 3401707)				$ 82.47
10	WP8573713		Thermal Cut-off   (Replaces: 8573713)			Immediately	$ 72.51
11	WPW10298258		Harness, Sensor   (Replaces: W10298258)			Immediately	$ 7.84
12	W10305870		Harness, Gas		Appelez-nous	-
13	W11129408		Housing, Outlet   (Replaces: W10153414)			Immediately	$ 53.28
14	W11222846		Door, Lint Screen   (Replaces: W10153413)			Immediately	$ 203.72
15	279936		Exhaust Pipe   (Replaces: 8066224)				$ 146.84
16	WPW10080190		Nut,3/8 X 16(r.h.)   (Replaces: W10001120)			Immediately	$ 8.49
17	W11299301		Bulkhead, Rear   (Replaces: 8520836)				$ 247.75
18	W11236646		Washer, Support   (Replaces: 3387459)			Immediately	$ 14.03
19	WPW10359272		Shaft, L.h. Thread   (Replaces: W10359272)			Immediately	$ 58.48
20	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10314173		Roller, Support   (Replaces: W10314171)			Immediately	$ 28.50
22	WP488627		Screw   (Replaces: 342055)				$ 7.57
23	W11219327		Outlet Housing Assembly   (Replaces: W10153423)				$ 90.54
24	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.06
25	W10545923		Complete Drum Assembly   (Replaces: 8318215)				$ 436.76
26	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 7.75
27	280114		Seal, Drum   (Replaces: 697694)			Immediately	$ 70.82
28	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.82
29	WP697557		Bulkhead, Front   (Replaces: 697557)				$ 208.03
30	W11684573		Clip, Exhaust   (Replaces: 8572105)				$ 7.78
31	WP489463		Screw   (Replaces: 489463)				$ 7.82
32	W11086603		Grille, Outlet   (Replaces: W10153412)			Immediately	$ 35.14
33	WP3392519		Thermal Fuse   (Replaces: 3392519)			Immediately	$ 24.95
34	WP3387223		Electrode, Sensor   (Replaces: 3387223)			Immediately	$ 6.17
35	W11226088		Lens, Drum Light   (Replaces: 3402841)				$ 31.09
36	WP22002263		Bulb, Light   (Replaces: 3406124)			Immediately	$ 13.66
37	WP697772		Wheel, Blower   (Replaces: 697772)			Immediately	$ 59.07
38	8578825		Bracket, Light				$ 20.88
39	W11222979		Socket, Assembly   (Replaces: W10214261)			Immediately	$ 113.13
40	WP697770		Seal, Cover Plate   (Replaces: 697770)			Immediately	$ 7.88
41	W10120998		Screen, Lint   (Replaces: W10049370)				$ 67.16
42	WP8577274		Thermostat, Internal-bias   (Replaces: 8577274)			Immediately	$ 43.61
43	WP3391912		Thermostat High-limit 255° F   (Replaces: 3391912)			Immediately	$ 71.56
44	W10888146		Housing, Blower   (Replaces: 8544362)				$ 101.70
45	WPW10128606		Lint Duct Assembly   (Replaces: 8066168)				$ 207.12
46	WP8573824		Funnel, Burner   (Replaces: 8573824)				$ 176.47
47	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 51.91
48	WP3387230		Screw   (Replaces: 3387230)			Immediately	$ 8.54
49	W11782150		Baffle, Drum   (Replaces: 697693)			Immediately	$ 91.02
50	WP8066208		Clip, Spring   (Replaces: W10345456)				$ 8.17
51	W11257251		Shield, Blower   (Replaces: W10128629)				$ 68.63

    View Diagram in Separate Window       Print Part List
