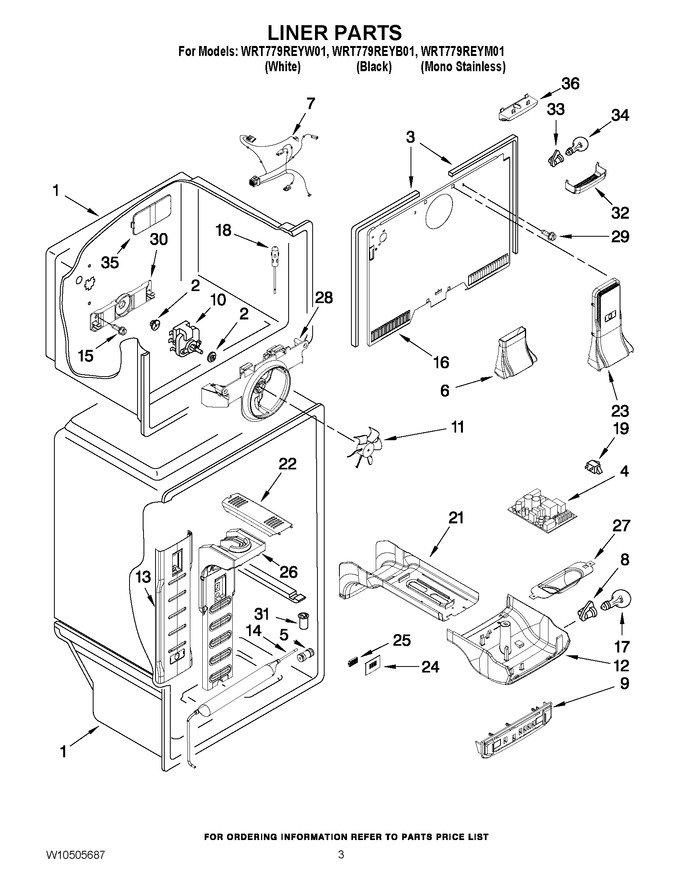

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (2) (Replaces: 2254359) |
|
$ 28.12 | |||||
| 4 | W11034365 | Control, Minotaur (Replaces: W10336510) |
|
$ 409.61 | |||||
| 5 | WPW10271543 | Connector, Water (Replaces: W10271543) |
|
Immediately | $ 35.43 | ||||
| 6 | W10396926 | Tower Conn Assy Fc |
|
$ 39.05 | |||||
| 7 | WPW10283809 | Wire Assy Evap Fan (Replaces: W10283809) |
|
$ 129.30 | |||||
| 8 | WPW10191429 | Socket, Light (Replaces: W10191429) |
|
$ 8.80 | |||||
| 9 | W10352336 | Fascia Control |
|
- | |||||
| 10 | WP2315539 | Fan Motor (Replaces: 2315539) |
|
Immediately | $ 83.25 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2200509) |
|
Immediately | $ 66.15 | ||||
| 12 | W10316942 | Control Box |
|
$ 100.98 | |||||
| 13 | WPW10356895 | Air Tower, Rc (Replaces: W10356895) |
|
$ 161.49 | |||||
| 14 | W10300426 | Water Reservoir |
|
- | |||||
| 15 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 16 | W10385128 | Cover, Evaporator |
|
$ 82.68 | |||||
| 17 | WPA3073101 | Light Bulb (2) (Replaces: 2326255) |
|
Immediately | $ 12.72 | ||||
| 18 | WPW10383615 | Thermistor, Fc (Replaces: W10383615) |
|
Immediately | $ 47.51 | ||||
| 19 | W11384469 | Rocker Arm (2) Switch (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 21 | WPW10305175 | Cover, Air Diffuser (Replaces: W10305175) |
|
$ 114.36 | |||||
| 22 | W10309097 | Light Cover, Rc |
|
$ 49.40 | |||||
| 23 | W10305174 | Air Tower |
|
$ 43.06 | |||||
| 24 | WPW10330850 | Grille, Air Filter (Replaces: W10330850) |
|
$ 37.56 | |||||
| 25 | W10311524 | Air Filter (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 26 | WPW10395376 | Multiflow Assembly (Replaces: W10395376) |
|
$ 88.78 | |||||
| 27 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 101.34 | |||||
| 28 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 32.47 | ||||
| 29 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 30 | 2254454 | Bracket Evap. Fan, Rear |
|
Immediately | $ 75.44 | ||||
| 31 | WP2210509 | Valve (Replaces: 2210509) |
|
$ 99.15 | |||||
| 32 | WPW10313918 | Light Cover, Fc (Replaces: W10313918) |
|
Immediately | $ 95.34 | ||||
| 33 | W11661565 | Light Socket, Fc (Replaces: W10440814) |
|
Immediately | $ 35.82 | ||||
| 34 | W11518235 | Light Bulb, Fc (Replaces: W10473925) |
|
Immediately | $ 29.29 | ||||
| 35 | W10404405 | Screw Cup |
|
- | |||||
| 36 | WPW10313917 | Light Housing, Fc (Replaces: W10313917) |
|
Immediately | $ 91.07 |
