Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10486290 Shelf Full 30``   (Replaces: W10486290) Special Order $ 263.28

2 W10373941 Crisper Pan 8`` Special Order $ 64.07

3 WPW10468557 Track Rail, Center   (Replaces: W10404446) In-Stock Immediately $ 30.75

4 W10425005 Shelf, Glass, Fz Appelez-nous -
5 WPW10468556 Track Rail, Rs   (Replaces: W10404450) In-Stock Immediately $ 7.55

6 WPW10468555 Track Rail, Ls   (Replaces: W10404449) In-Stock Immediately $ 25.10

7 WPW10308848 Pan Meat 30``   (Replaces: W10308848) Special Order $ 162.37

8 W10373931 Crisper Pan 16`` Appelez-nous -
9 WPW10502933 Shelf 2/3 Flip   (Replaces: W10345378) Special Order $ 303.44

10 W11395919 Shelf Support, Lh   (Replaces: W10345367) Special Order $ 30.07

11 WPW10313893 Shelf 2/3 Flip Frt   (Replaces: W10313893) Special Order $ 190.30

12 WPW10425538 Pan, Ice Cube   (Replaces: W10425538) Special Order $ 185.21

13 W11395921 Shelf Support, Rh   (Replaces: W10345368) Special Order $ 30.07


    View Diagram in Separate Window     Print Icon   Print Part List

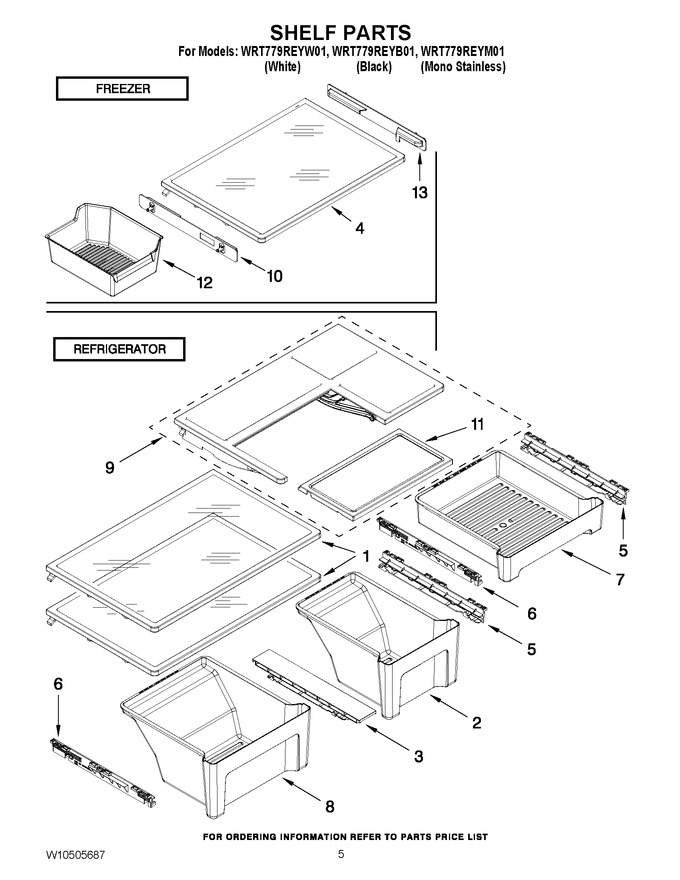

Diagram for WRT779REYB01
