SELECT A DIAGRAM

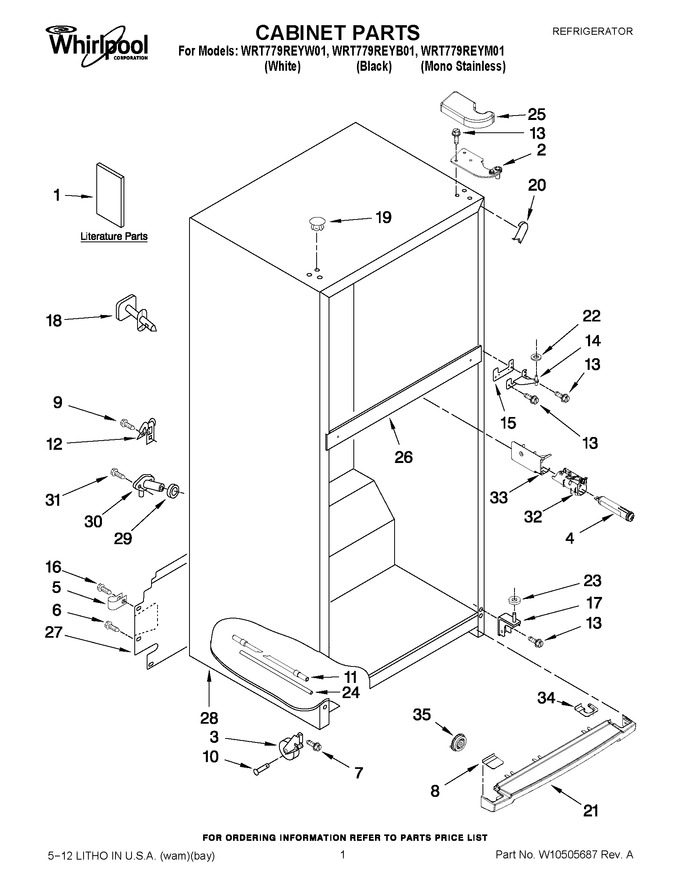

01 - Cabinet Parts


02 - Liner Parts


03 - Shelf Parts


04 - Freezer Door Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Icemaker Parts


08 - Dispenser Front Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677969		Do-it-yourself Manual, Ref./ Fzr.				$ 30.30
1	W10486305		Service & Wiring Sheet		Appelez-nous	-
1	W10435561		Energy Label		Appelez-nous	-
1	W10370647		Use & Care Guide		Appelez-nous	-
2	WPW10300065		Hinge (top)   (Replaces: W10300065)				$ 13.94
3	WP2166108		Roller, Front (2)   (Replaces: 2166108)			Immediately	$ 34.76
4	EDR1RXD1B		Water Filter, Pur   (Replaces: W10217316)			Immediately	$ 49.99
5	WP488366		Clamp, Tube (water Supply Line)   (Replaces: 489385)				$ 11.92
6	WP489427		Screw   (Replaces: 489427)				$ 7.84
7	W10850698		Screw   (Replaces: 3400517)				$ 14.42
8	WPW10339257		Cover, Toe Grille (white)   (Replaces: W10339257)				$ 85.42
8	W10353930		Cover, Toe Grille (black)				$ 85.34
8	WPW10353932		Cover, Toe Grille (grey)   (Replaces: W10353932)				$ 85.50
9	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
10	W11594405		Rivet   (Replaces: 2221797)			Immediately	$ 19.12
11	W10306393		Tube, Filter Inlet				$ 56.31
12	549193		Clamp, Cord				$ 14.06
13	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
14	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 92.02
15	WP2183852		Shim, Hinge Center   (Replaces: 2183852)				$ 11.18
16	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 8.38
17	WP2254473		Hinge Butt   (Replaces: 2254473)				$ 9.28
18	N/P		Fitting, Water Tube (not Serviced)		Appelez-nous	-
19	WP2151652		Hole Plug (6) (white)   (Replaces: 2201012)				$ 22.87
19	WPW10520307		Hole Plug (6) (grey)   (Replaces: 2254506)			Immediately	$ 7.55
19	WP2183998		Hole Plug (6) (black)   (Replaces: 2183998)				$ 19.01
20	W11252732		Corner Filler (2) (black)   (Replaces: W10283960)				$ 13.07
20	W10851579		Corner Filler (2) (grey)   (Replaces: W10283961)			Immediately	$ 7.55
20	WPW10283959		Corner Filler (2) (white)   (Replaces: W10283959)				$ 8.21
21	WPW10353933		Grille (black)   (Replaces: W10353933)				$ 162.80
21	WPW10353935		Grille (grey)   (Replaces: W10353935)			Immediately	$ 103.32
21	WPW10300127		Grille (white)   (Replaces: W10300127)				$ 161.49
22	WP489467		Washer, Plain   (Replaces: 489341)			Immediately	$ 11.42
23	WP487576		Washer, Nylon   (Replaces: 487576)			Immediately	$ 9.88
24	W10306394		Tube, Filter Outlet				$ 54.60
25	W10331654		Cover, Hinge (white Ls)		Appelez-nous	-
25	W10353948A		Cover, Hinge (black Ls)   (Replaces: W10353948)				$ 15.13
25	W10331560A		Cover, Hinge (white Rs)   (Replaces: W10331560)				$ 13.44
25	W10353947A		Cover, Hinge (grey Rs)   (Replaces: W10353947)				$ 14.28
25	W10353950A		Cover, Hinge (grey Ls)   (Replaces: W10353950)				$ 24.38
25	W10353945A		Cover, Hinge (black Rs)   (Replaces: W10353945)				$ 15.13
26	N/P		Rail Center (not Serviced)		Appelez-nous	-
27	W10636716		Cover, Unit   (Replaces: W10384413)				$ 105.27
28	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
29	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 10.43
30	W11292468		Fitting, Water Tube   (Replaces: W10472793)			Immediately	$ 163.96
31	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 8.28
32	W10844267		Housing, Water Filter   (Replaces: W10346257)			Immediately	$ 142.29
33	WPW10306392		Cover, Water Filter   (Replaces: W10306392)				$ 106.06
34	W10405454		Endcap, Grille Hinge (white)		Appelez-nous	-
34	W10405455		Endcap, Grille Hinge (black)		Appelez-nous	-
34	W10405456		Endcap, Grille Hinge (midnight Grey)				$ 34.43
35	W10331226		Drum, Toe Grille				$ 47.42

    View Diagram in Separate Window       Print Part List
