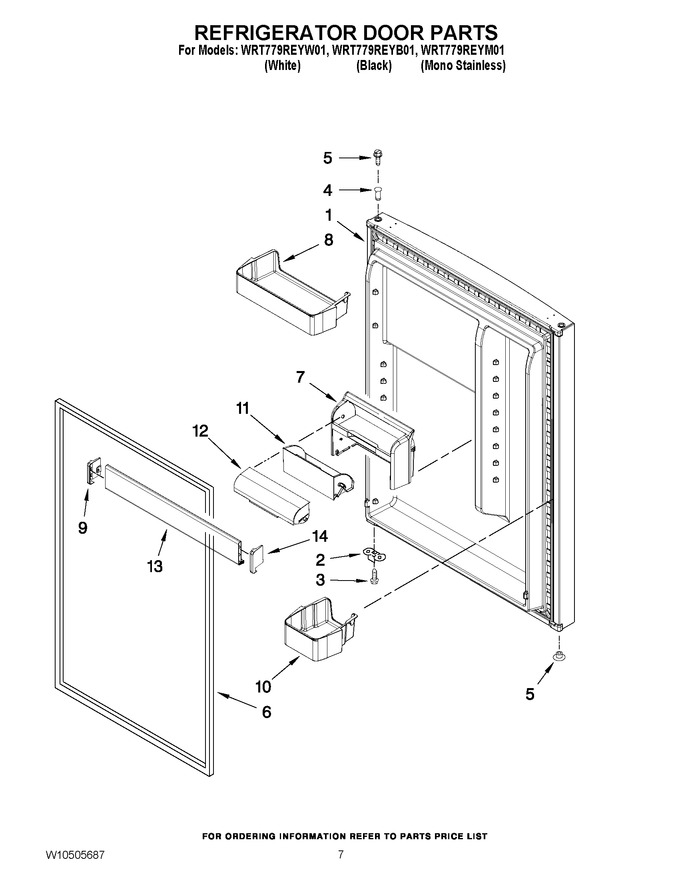

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10346812 | Refrigerator Door (includes No.6) (white) |
|
- | |||||
| 1 | W10354686 | Refrigerator Door (includes No.6) (black) |
|
- | |||||
| 1 | W10354704 | Refrigerator Door (includes No.6) (mono Stainless) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | WP681249 | Screw, 8 X 1/2 (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11189115 | Thimble (Replaces: W10334042) |
|
$ 12.71 | |||||
| 5 | WP2254517 | Hole Plug, Hinge (grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 5 | WP2212651 | Hole Plug, Hinge (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 5 | WP2212648 | Hole Plug, Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 6 | 2177305 | Door Gasket, Magnetic (black) (Replaces: 2202881) |
|
$ 274.07 | |||||
| 6 | 2159057 | Door Gasket, Magnetic (mist Beige) (Replaces: 2202874) |
|
Immediately | $ 164.66 | ||||
| 6 | W11624977 | Door Gasket, Magnetic (grey) (Replaces: W10279664) |
|
$ 370.52 | |||||
| 7 | W10308809 | Utility Compart |
|
$ 35.60 | |||||
| 8 | WPW10308868 | Bin, Long (Replaces: W10308868) |
|
Immediately | $ 89.09 | ||||
| 9 | W10338485 | Endcap Trim Ls |
|
$ 10.41 | |||||
| 10 | WPW10308867 | Bin, Short (Replaces: W10308867) |
|
$ 73.84 | |||||
| 11 | W10356445 | Bin, Tilt Out |
|
$ 40.93 | |||||
| 12 | WPW10308843 | Utility Flip Lid (Replaces: W10308843) |
|
$ 78.98 | |||||
| 13 | W10308872 | Trim, Door Shelf |
|
- | |||||
| 14 | W10308871 | Endcap Trim Rs |
|
$ 10.44 |
