SELECT A DIAGRAM

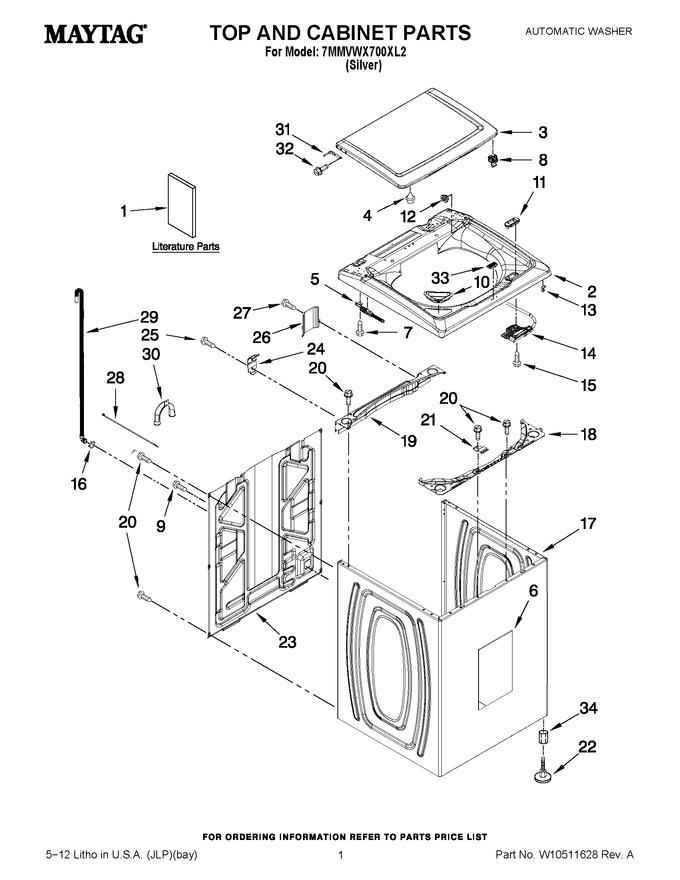

01 - Top And Cabinet Parts


02 - Console And Dispenser Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10478095		Installation Instructions		Appelez-nous	-
1	W10366295		Energy Guide		Appelez-nous	-
1	W10331110		Quick Start Guide		Appelez-nous	-
1	W10468342		Tech Sheet		Appelez-nous	-
1	W10329770		Use & Care Guide		Appelez-nous	-
2	W10268719		Top		Appelez-nous	-
3	WPW10427125		Lid (includes Item 4)   (Replaces: W10427125)				$ 408.96
4	WP9724509		Bumper, Lid   (Replaces: 9724509)			Immediately	$ 8.33
5	W10270399		Hinge Lid (r.h.)				$ 131.91
5	W10270398		Hinge, Lid (l.h.)				$ 135.85
6	W11096159		Damper, Sound   (Replaces: W10414221)				$ 28.73
7	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
8	WPW10239969		Strike, Lid Lock   (Replaces: W10239969)				$ 28.13
9	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
10	W10304138		Dispenser, Bleach		Appelez-nous	-
11	WPW10392092		Bezel, Lid Lock   (Replaces: W10392092)				$ 8.10
12	W10293293		Bearing, Lid Hinge (right)				$ 17.47
12	W10293653		Bearing, Lid Hinge (left)				$ 17.47
13	WP90016		Clip, Lid Lock Harness   (Replaces: 90016)				$ 11.89
14	W10404050		Latch, Lid Lock Assembly   (Replaces: W10238287)			Immediately	$ 81.88
15	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
16	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
17	W10240528		Cabinet		Appelez-nous	-
18	W11695476		Brace, Cabinet (top - Front)   (Replaces: W10215098)				$ 79.79
19	W11712680		Brace, Cabinet (top - Rear)   (Replaces: W10215099)				$ 103.88
20	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
21	WPW10248088		Lock, Top   (Replaces: W10248088)				$ 18.83
22	W10739673		Foot Assembly, Leveling   (Replaces: W10397767)				$ 14.33
23	W11486091		Panel Rear   (Replaces: W10250884)			Immediately	$ 327.72
24	W10432012		Hinge, Top   (Replaces: W10215102)				$ 89.46
25	WP489128		Screw   (Replaces: W10142728)				$ 11.40
26	W10676061		Cover, Harness   (Replaces: W10215139)				$ 36.77
27	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
28	WPW10339879		Cable Tie   (Replaces: W10339879)				$ 8.30
29	W11244231		Hose, Outer Drain Assembly (includes Items 30 & 31)   (Replaces: W10221546)			Immediately	$ 32.07
30	WPW10280024		U-bend, Drain Hose   (Replaces: W10280024)				$ 83.51
31	WP8572974		Hinge, Wire (r.h.)   (Replaces: 8572974)			Immediately	$ 30.50
31	WP8563965		Hinge, Wire (l.h.)   (Replaces: 8563965)			Immediately	$ 30.91
32	W11404293		Screw   (Replaces: W10339706)			Immediately	$ 14.74
33	W10492808		Badge, Maytag   (Replaces: W10323735)				$ 59.82
34	WP3359452		Nut, Locking   (Replaces: 3359452)			Immediately	$ 7.55
