01 - Top And Cabinet Parts

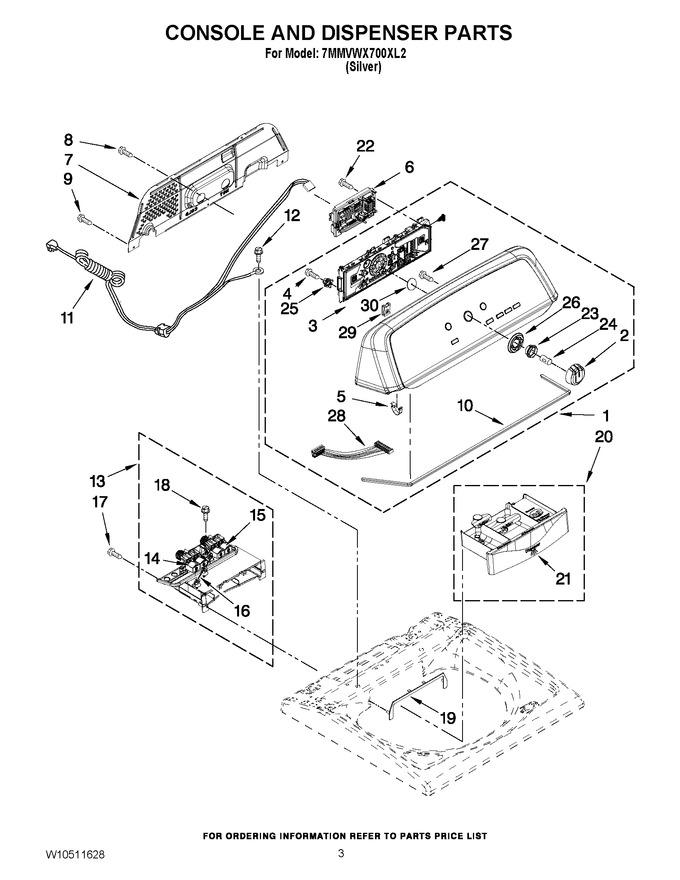

02 - Console And Dispenser Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10351444 | Console |
|
- | |||||
| 2 | WPW10251384 | Knob, Control (Replaces: W10251384) |
|
$ 64.58 | |||||
| 3 | WPW10272638 | User Interface (Replaces: W10272638) |
|
$ 328.42 | |||||
| 4 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 5 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W10480322 | Control Unit Assembly, Machine & Motor |
|
- | |||||
| 7 | W10420984 | Panel, Console Rear Cover |
|
$ 344.83 | |||||
| 8 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 9 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 10 | W10280079 | Seal, Console |
|
- | |||||
| 11 | WPW10525195 | Cord, Power (Replaces: W10266797) |
|
$ 143.92 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | W11158805 | Housing Assembly - Dispenser (Replaces: W10432327) |
|
Immediately | $ 381.41 | ||||
| 14 | W11168740 | Valve, Cold Water Inlet (Replaces: W10240949) |
|
Immediately | $ 163.15 | ||||
| 15 | W11168743 | Valve, Hot Water Inlet (Replaces: W10240948) |
|
Immediately | $ 112.07 | ||||
| 16 | W10240967 | Harness, Valve |
|
$ 179.04 | |||||
| 17 | W11700520 | Screw, Dispenser Housing Mounting (Replaces: 3400061) |
|
$ 14.28 | |||||
| 18 | WPW10109200 | Screw, Inlet Valve Mounting (Replaces: 97787) |
|
Immediately | $ 8.80 | ||||
| 19 | W10240946 | Bezel, Dispenser |
|
$ 23.60 | |||||
| 20 | WPW10658444 | Drawer, Dispenser Assembly (Replaces: W10240960) |
|
$ 165.09 | |||||
| 21 | W10287478 | Handle, Dispenser Drawer Facia |
|
- | |||||
| 22 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 23 | W10326923 | Spacer, Knob |
|
- | |||||
| 24 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 25 | W10274524 | Tensioner, Facia |
|
- | |||||
| 26 | W10305134 | Bezel, Cycle Trim |
|
$ 26.37 | |||||
| 27 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 28 | W10285492 | Harness, User Interface |
|
$ 17.66 | |||||
| 29 | W11213336 | Nut, U-type (Replaces: W10298336) |
|
$ 8.13 | |||||
| 30 | W10323092 | Seal, Ui |
|
- |
