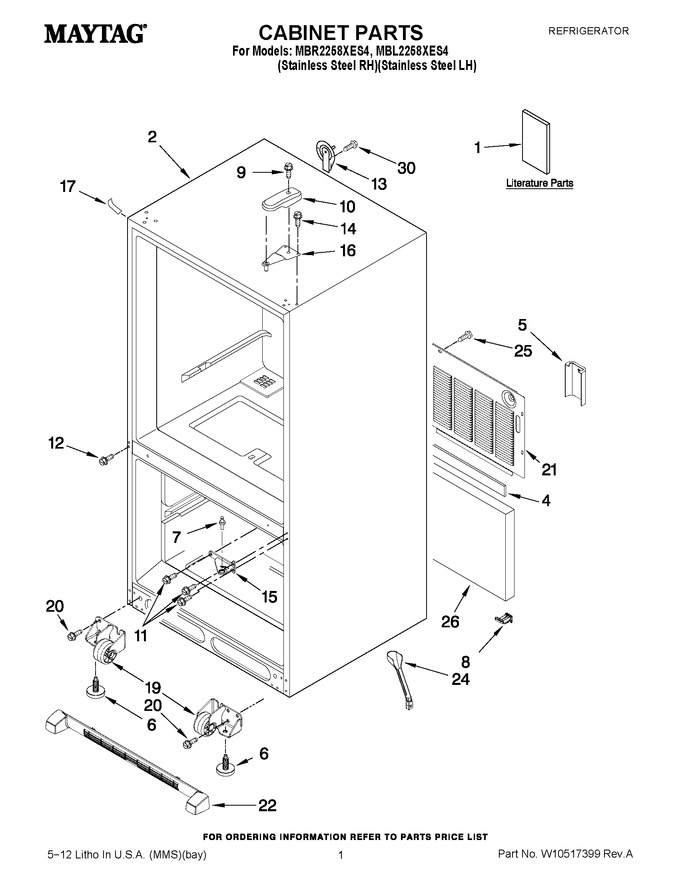

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10366206SP		Use & Care Guide		Appelez-nous	-
1	W10476805		Tech Sheet		Appelez-nous	-
1	W10325962		Energy Guide		Appelez-nous	-
2	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
4	B5759655		Gasket				$ 13.03
5	W10208592		Guard-water Valve		Appelez-nous	-
6	WPW10141622		Foot, Brake   (Replaces: W10141622)			Immediately	$ 8.24
7	WP67006642		Pin, Center Hinge   (Replaces: 10351006)				$ 8.78
8	W10216614		Sweep-water Valve				$ 18.51
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.55
10	67001012		Cover, Hinge(black)   (Replaces: 12477601B)				$ 49.71
11	WP489349		Screw   (Replaces: 12990101)			Immediately	$ 8.43
12	WP98165		Screw   (Replaces: 12990521)				$ 8.57
13	12726003		Cover, Waterline				$ 19.19
14	WP489349		Screw (3)   (Replaces: 12992403)			Immediately	$ 8.43
15	WP12607104ED		Hinge, Center (black)   (Replaces: 12607104ED)				$ 167.35
16	WP12566606ED		Hinge, Top   (Replaces: 12566606ED)			Immediately	$ 47.13
17	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 22.14
19	W11820445		Roller Assembly (right)   (Replaces: W10275849)			Immediately	$ 37.35
19	W11820444		Roller Assembly (left)   (Replaces: W10275850)			Immediately	$ 37.35
20	67006564		Screw (4)   (Replaces: 12991302)			Immediately	$ 8.15
21	WPW10210979		Cover, Unit   (Replaces: W10210979)				$ 206.23
22	WPW10534162		Grille, Toe (black)   (Replaces: W10236196N)				$ 148.16
24	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
25	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
26	12820505		Fiber, Acoustic				$ 71.70
30	WP98165		Screw   (Replaces: 12990504)				$ 8.57
