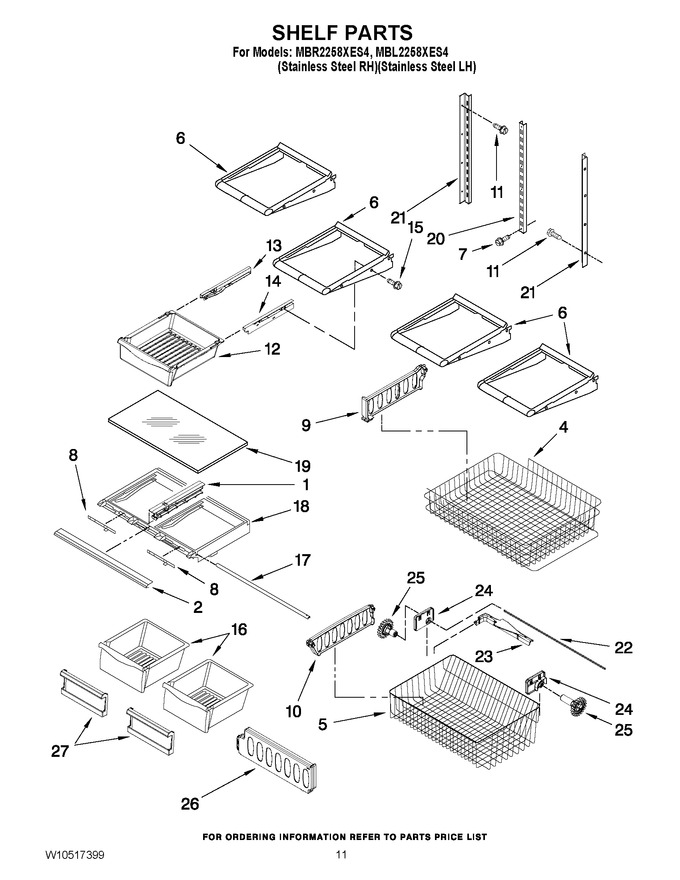

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: 12530701N) |
|
Immediately | $ 118.46 | ||||
| 2 | WPW10231343 | Trim, Crisper (Replaces: W10231343N) |
|
Immediately | $ 99.65 | ||||
| 4 | W10348238 | Basket, Freezer (upper) |
|
$ 228.13 | |||||
| 5 | WPW10503183 | Basket, Freezer (lower) (Replaces: W10150038) |
|
Immediately | $ 249.35 | ||||
| 6 | W11402523 | Shelf (4) (Replaces: 12463509) |
|
Immediately | $ 232.46 | ||||
| 7 | W10215666 | Screw |
|
$ 9.53 | |||||
| 8 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 9 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 29.19 | ||||
| 10 | W10847995 | Divider, Basket (lower) (Replaces: W10146440) |
|
$ 92.48 | |||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 12 | WP67001314 | Pan, Deli (Replaces: 12656404V) |
|
$ 163.10 | |||||
| 13 | WP67001054 | Glide, Left (Replaces: 12656601V) |
|
Immediately | $ 8.82 | ||||
| 14 | WP67001053 | Glide, Right (Replaces: 12656602V) |
|
Immediately | $ 9.24 | ||||
| 15 | W11233072 | Screw, Glide (4) (Replaces: 12990302V) |
|
Immediately | $ 14.72 | ||||
| 16 | WP67002633 | Pan, Crisper (Replaces: 12530505N) |
|
Immediately | $ 149.12 | ||||
| 17 | WP12227303WD | Brace, Crisper (Replaces: 12227303WD) |
|
$ 111.25 | |||||
| 18 | WPW10568041 | Frame, Crisper (Replaces: 12530401SP) |
|
Immediately | $ 137.23 | ||||
| 19 | WP67006878 | Glass, Crisper Cover (Replaces: 12204822N) |
|
Immediately | $ 185.19 | ||||
| 20 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 21 | W10251969 | Ladder, Side |
|
$ 31.44 | |||||
| 22 | W10802339 | Shaft-rack (Replaces: 12812905WD) |
|
$ 104.17 | |||||
| 23 | W10149389 | Lift-bail Arm (Replaces: W10149389N) |
|
$ 92.66 | |||||
| 24 | W10348260 | Mount-gear (right Side) |
|
$ 89.90 | |||||
| 24 | W10348259 | Mount-gear (left Side) |
|
$ 89.87 | |||||
| 25 | WPW10474715 | Gear (long-right) (Replaces: W10474715) |
|
Immediately | $ 32.76 | ||||
| 25 | WPW10474716 | Gear (short-left) (Replaces: W10474716) |
|
Immediately | $ 32.42 | ||||
| 26 | W10311695 | Divider-upper Fz |
|
$ 30.20 | |||||
| 27 | 12643702 | Frame, Crisper |
|
Immediately | $ 43.97 |
