SELECT A DIAGRAM

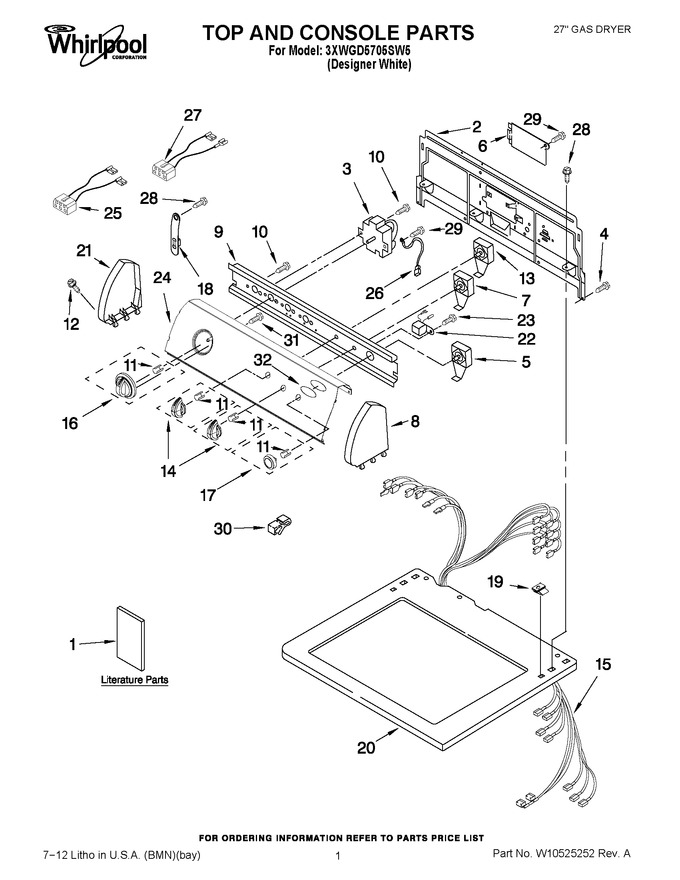

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10396186 | Wiring Diagram |
|
- | |||||
| 1 | W10131645 | Guide, Use & Care |
|
- | |||||
| 1 | W10115529 | Instructions, Installation |
|
- | |||||
| 2 | 285909 | Panel, Rear Console (Replaces: 8317305) |
|
$ 261.42 | |||||
| 3 | WPW10116281 | Timer (Replaces: 8299769) |
|
$ 326.21 | |||||
| 4 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 5 | W10238464 | Switch, Push-to-start |
|
- | |||||
| 6 | W10601020 | Cover, Terminal Block (Replaces: W10096918) |
|
- | |||||
| 7 | W10168170 | Switch, Rotary Tpa |
|
$ 206.68 | |||||
| 8 | 8271363 | Cap, End (r.h.) |
|
- | |||||
| 9 | 8544897 | Bracket, Control |
|
- | |||||
| 10 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 11 | WP8536939 | Spring, Clip Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 | |||||
| 13 | W11235848 | Switch, Temperature (Replaces: W10168168) |
|
- | |||||
| 14 | W10034380 | Knob, Control |
|
$ 25.06 | |||||
| 15 | W10386320 | Harness, Wiring |
|
- | |||||
| 16 | W10034750 | Timer Knob Assembly |
|
$ 28.27 | |||||
| 17 | WPW10034790 | Knob, Push-to-start (Replaces: W10034790) |
|
$ 57.81 | |||||
| 18 | WP8568314 | Strap, Console (Replaces: 8568314) |
|
$ 8.17 | |||||
| 19 | WP357213 | Nut, Push In (Replaces: 357213) |
|
$ 7.76 | |||||
| 20 | 8271399 | Top |
|
- | |||||
| 21 | 8271369 | Cap, End (l.h.) |
|
- | |||||
| 22 | 8522378 | Mini Buzzer (non-adjustable) |
|
- | |||||
| 23 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 24 | W10095950 | Panel, Control |
|
$ 180.58 | |||||
| 25 | W10128690 | Wire, Jumper Assembly |
|
- | |||||
| 26 | W10110977 | Wire, Ground |
|
- | |||||
| 27 | W10128691 | Wire, Jumper (guard On/off) |
|
- | |||||
| 28 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 29 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| 30 | W10113937 | Clip, Grounding |
|
$ 11.37 | |||||
| 31 | 3400859 | Screw (Replaces: 8533951) |
|
$ 13.88 | |||||
| 32 | 3955775 | Badge |
|
- |
