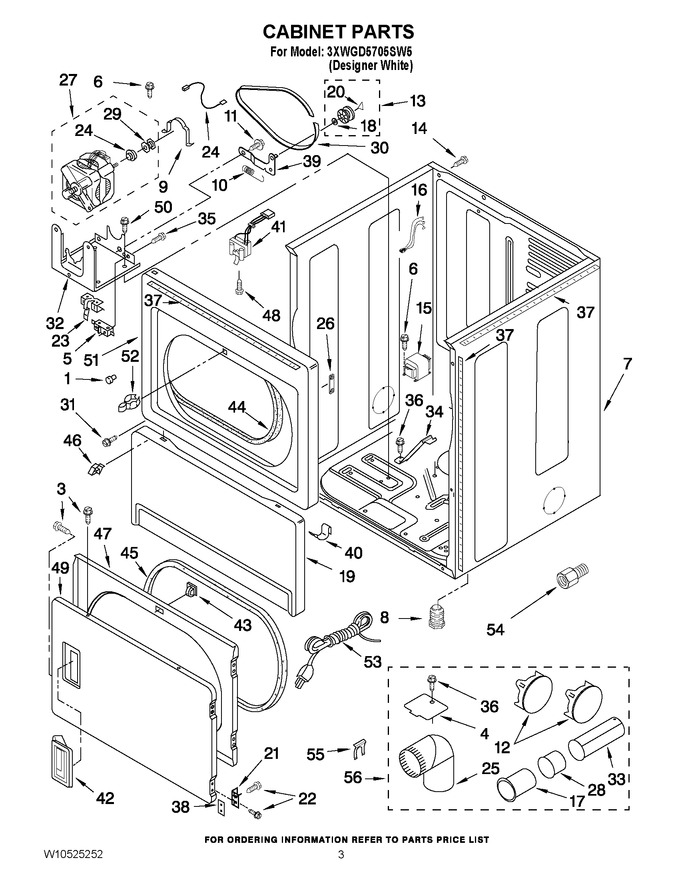

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	693152		Bumper				$ 10.96
3	WP489463		Screw   (Replaces: 489463)				$ 7.82
4	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 8.96
5	WP8318457		Switch, Broken Belt   (Replaces: 8318457)				$ 42.09
6	W11676450		Screw   (Replaces: 3400000)				$ 14.06
7	W11417441		Cabinet   (Replaces: 8310656)				$ 419.21
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
12	WPW10404617		Plug, Multivent   (Replaces: W10404617)				$ 71.98
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	W10850756		Screw   (Replaces: 8533974)				$ 7.76
15	W10851673		Transformer   (Replaces: 3977633)				$ 397.59
16	W10190549		Transformer Jumper		Appelez-nous	-
17	WP8563747		Exhaust Pipe   (Replaces: 8563747)				$ 91.38
18	WPW10121334		Washer, Thrust   (Replaces: W10121334)			Immediately	$ 7.19
19	WP3406797		Panel, Toe Door   (Replaces: 697215)				$ 238.33
20	WPW10512946		Tri Ring   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10279703		Hinge & Pin Assembly   (Replaces: W10279703)				$ 72.22
22	WP488627		Screw   (Replaces: 342055)				$ 7.57
23	W10854043		Lever, Snap Switch   (Replaces: W10083220)				$ 29.00
24	WP3393657		Belt Restrainer   (Replaces: 3393657)			Immediately	$ 132.46
25	WPW10416072		4`` - 90° Elbow   (Replaces: 49026)				$ 26.82
26	W10191265		Plug, Hinge				$ 44.28
27	W10416573		Motor, Assembly 50 Hz.   (Replaces: W10289661)				$ 238.86
28	WPW10331278		Exhaust Pipe (short)   (Replaces: W10331278)				$ 78.95
29	3402548		Pulley 50 Hz.		Appelez-nous	-
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	W10891954		Screw   (Replaces: 8281212)		Appelez-nous	-
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 133.59
33	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 88.80
34	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
35	3400934		Screw		Appelez-nous	-
36	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
37	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 37.82
38	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 11.11
39	W10837240		Idler Bracket   (Replaces: W10118756)			Immediately	$ 35.78
40	WPW10291934		Clip   (Replaces: W10291934)				$ 7.75
41	WPW10237959		Door Switch Assembly   (Replaces: W10237959)			Immediately	$ 55.64
42	3389522		Handle, Door				$ 77.90
43	279570		Catch, Door   (Replaces: 3392538)			Immediately	$ 8.89
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP3390735		Seal, Door   (Replaces: 3390735)				$ 130.60
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	280083		Door, Rear   (Replaces: W10323061)				$ 287.02
48	WP3395530		Screw   (Replaces: 697773)				$ 7.70
49	W11663440		Door, Front   (Replaces: W10322546)				$ 259.37
50	3400097		Screw		Appelez-nous	-
51	W10193554		Upper Front Panel		Appelez-nous	-
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
53	W10111542		Cord, Power		Appelez-nous	-
54	WP8316063		Adapter, Gas Inlet   (Replaces: 8316063)				$ 138.96
55	W11712577		Clip,strain Relief   (Replaces: 694415)			Immediately	$ 7.40
NI	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey)   (Replaces: W10186596)			Immediately	$ 76.65
NI	49621		Foot-optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
