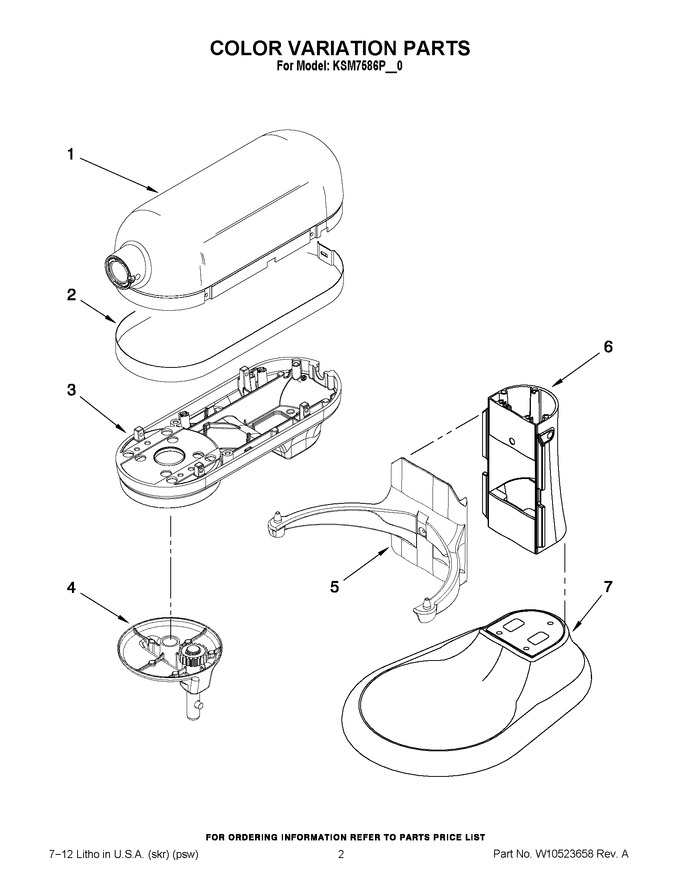

01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit
03 - Base And Pedestal Unit
04 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9705296 | Motor Housing (onyx Black) |
|
$ 88.20 | |||||
| 1 | WPW10403016 | Motor Housing (candy Apple) (Replaces: W10403016) |
|
$ 65.02 | |||||
| 1 | W10454050 | Motor Housing (frosted Pearl) |
|
- | |||||
| 1 | WPW10354887 | Motor Housing (medallion Silver) (Replaces: W10354887) |
|
$ 65.39 | |||||
| 1 | W10520271 | Motor Housing (sugar Pearl) |
|
- | |||||
| 2 | W10234515 | Trim Band (dark Platinum) |
|
$ 34.93 | |||||
| 3 | W10410015 | Lower Gearcase (onyx Black) (Replaces: W10410012) |
|
$ 63.99 | |||||
| 3 | W10520261 | Lower Gearcase (sugar Pearl) (Replaces: W10520260) |
|
- | |||||
| 3 | W10403006 | Lower Gearcase (candy Apple) (Replaces: W10403004) |
|
$ 65.91 | |||||
| 3 | W10454060 | Lower Gearcase (frosted Pearl) (Replaces: W10454059) |
|
- | |||||
| 3 | W10354882 | Lower Gearcase (medallion Silver) (Replaces: W10354881) |
|
$ 68.17 | |||||
| 4 | WPW10410018 | Planetary (onyx Black) (Replaces: W10410018) |
|
$ 65.60 | |||||
| 4 | WPW10403008 | Planetary (candy Apple) (Replaces: W10403008) |
|
$ 64.97 | |||||
| 4 | W10520287 | Planetary (frosted Pearl) |
|
$ 77.73 | |||||
| 4 | WPW10354883 | Planetary (medallion Silver) (Replaces: W10354883) |
|
$ 65.28 | |||||
| 4 | W10520266 | Planetary (sugar Pearl) |
|
- | |||||
| 5 | 9705356 | Bowl Support And Pins (onyx Black) |
|
- | |||||
| 5 | WPW10402998 | Bowl Support And Pins (candy Apple) (Replaces: W10402998) |
|
$ 98.26 | |||||
| 5 | W10448659 | Bowl Support And Pins (frosted Pearl) |
|
- | |||||
| 5 | WPW10354878 | Bowl Support And Pins (medallion Silver) (Replaces: W10354878) |
|
$ 104.19 | |||||
| 5 | W10520248 | Bowl Support And Pins (sugar Pearl) |
|
- | |||||
| 6 | 9705320 | Column And Pins (onyx Black) |
|
- | |||||
| 6 | WPW10402992 | Column And Pins (candy Apple) (Replaces: W10402992) |
|
$ 109.87 | |||||
| 6 | W10520203 | Column And Pins (frosted Pearl) |
|
- | |||||
| 6 | WPW10354872 | Column And Pins (medallion Silver) (Replaces: W10354872) |
|
$ 107.32 | |||||
| 6 | W10520205 | Column And Pins (sugar Pearl) |
|
- | |||||
| 7 | 9705344 | Base & Foot Assembly (onyx Black) |
|
- | |||||
| 7 | WPW10402986 | Base & Foot Assembly (candy Apple) (Replaces: W10402986) |
|
$ 111.33 | |||||
| 7 | W10448638 | Base & Foot Assembly (frosted Pearl) |
|
- | |||||
| 7 | WPW10354860 | Base & Foot Assembly (medallion Silver) (Replaces: W10354860) |
|
$ 105.77 | |||||
| 7 | W10520258 | Base & Foot Assembly (sugar Pearl) |
|
- |
