SELECT A DIAGRAM

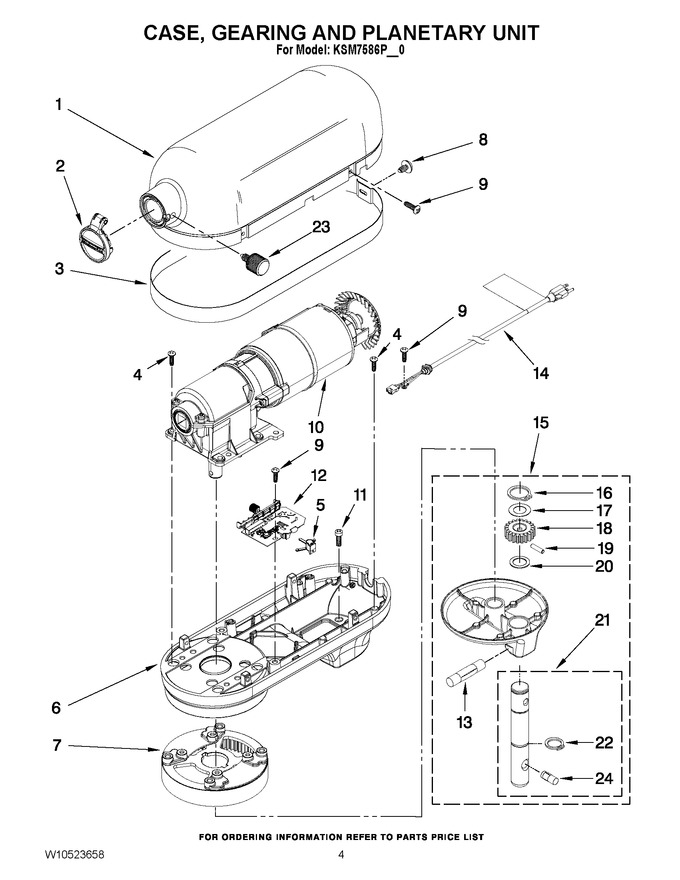

01 - Color Variation Parts


02 - Case, Gearing And Planetary Unit


03 - Base And Pedestal Unit


04 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Gearcase Motor Housing		Appelez-nous	-
2	WPW10395280		Cap, Attachment Hub, Hinged   (Replaces: W10395280)				$ 30.44
3	N/P		Band, Trim		Appelez-nous	-
4	W10914506		Screw   (Replaces: W10351843)				$ 4.59
5	WPW10305968		Holder, Control   (Replaces: W10305968)				$ 4.33
6	N/P		Lower Gearcase		Appelez-nous	-
7	W10234493		Gear, Ring & Plate To Planetary				$ 8.95
8	WP3196170		Screw   (Replaces: 3400617)				$ 7.55
9	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
10	WPW10517938		Motor, 120 V Assy W/transmission   (Replaces: W10234504)			Immediately	$ 191.49
11	W10913677		Screw   (Replaces: 3400200)				$ 4.64
12	WPW10487697		Control Assembly   (Replaces: W10200720)				$ 181.60
13	WPW10234531		Pin, Groove   (Replaces: W10234531)			Immediately	$ 5.29
14	W11788679		Cord, Power (black)   (Replaces: W10338492)				$ 21.07
15	N/P		Planetary Assembly		Appelez-nous	-
16	WP9703438		Clip, Retaining   (Replaces: 9703438)			Immediately	$ 4.60
17	WP9706090		Washer   (Replaces: 9706090)				$ 5.04
18	WPW10234643		Gear, Pinion   (Replaces: W10234643)				$ 5.61
19	WP9707223		Pin, Retaining   (Replaces: 9707223)			Immediately	$ 5.08
20	W10854966		Washer   (Replaces: 8533910)				$ 4.94
21	WP9708191		Shaft, Agitator   (Replaces: 9708191)			Immediately	$ 17.84
22	WP9703680		Clip, Retaining   (Replaces: 9703680)			Immediately	$ 4.99
23	WPW10360791		Thumb Screw (black)   (Replaces: W10360791)				$ 10.68
24	W11664709		Pin, Groove   (Replaces: 9704677)			Immediately	$ 6.75

    View Diagram in Separate Window       Print Part List
