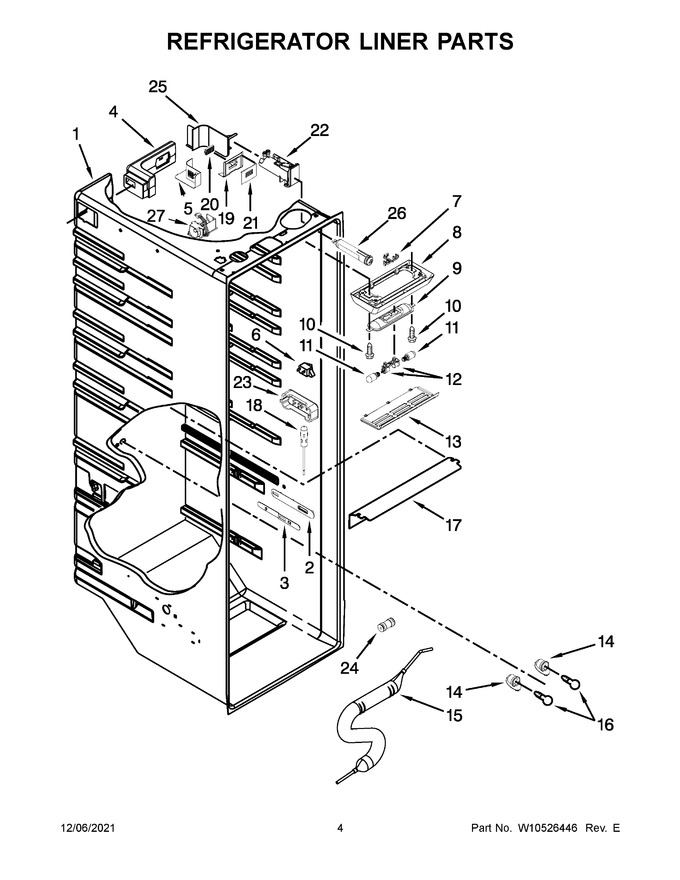

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | W10260988 | Escutcheon, Meat Pan Control |
|
- | |||||
| 3 | W10362465 | Slide, Meat Pan Control |
|
- | |||||
| 4 | W11177624 | Assembly, Air Diffuser (Replaces: W10750439) |
|
$ 123.67 | |||||
| 5 | WPW10260409 | Cover, Air Diffuser (Replaces: W10260409) |
|
$ 85.34 | |||||
| 6 | W11384469 | Switch, Rocker Arm (Replaces: W11234536) |
|
Immediately | $ 39.09 | ||||
| 7 | W10253300 | Assembly, Top Light Wire |
|
- | |||||
| 8 | W10280178 | Trim, Light |
|
- | |||||
| 9 | 2223680 | Shield, Heat |
|
$ 93.52 | |||||
| 10 | WP3400906 | Screw (Replaces: W10141632) |
|
$ 9.05 | |||||
| 11 | WPA3073101 | Bulb, Light (Replaces: 2326255) |
|
Immediately | $ 12.72 | ||||
| 12 | WPW10191429 | Socket, Light (Replaces: W10191429) |
|
$ 8.80 | |||||
| 13 | W10280420 | Lens, Top Light |
|
$ 107.14 | |||||
| 14 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 15 | W11802492 | Reservoir (Replaces: W10366790) |
|
$ 88.91 | |||||
| 16 | W11679940 | Bulb, Light (Replaces: 2311792) |
|
Immediately | $ 11.30 | ||||
| 17 | WPW10269099 | Lens, Light (Replaces: W10269099) |
|
$ 128.01 | |||||
| 18 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 33.60 | ||||
| 19 | W10342986 | Housing, Air Filter |
|
- | |||||
| 20 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 21 | W10340015 | Cover, Air Filter |
|
- | |||||
| 22 | WPW10238123 | Housing, Water Filter (Replaces: W10844069) |
|
$ 239.81 | |||||
| 23 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 88.38 | ||||
| 24 | WPW10271543 | Connector, Water Tube (Replaces: W10271543) |
|
Immediately | $ 35.43 | ||||
| 25 | WPW10260405 | Cover, Water Filter (Replaces: W10260405) |
|
$ 118.77 | |||||
| 26 | EDR1RXD1B | Filter, Water (Replaces: W10735398) |
|
Immediately | $ 49.99 | ||||
| 27 | W11808478 | Damper, Electronic Control (Replaces: W10745484) |
|
Immediately | $ 139.31 |
