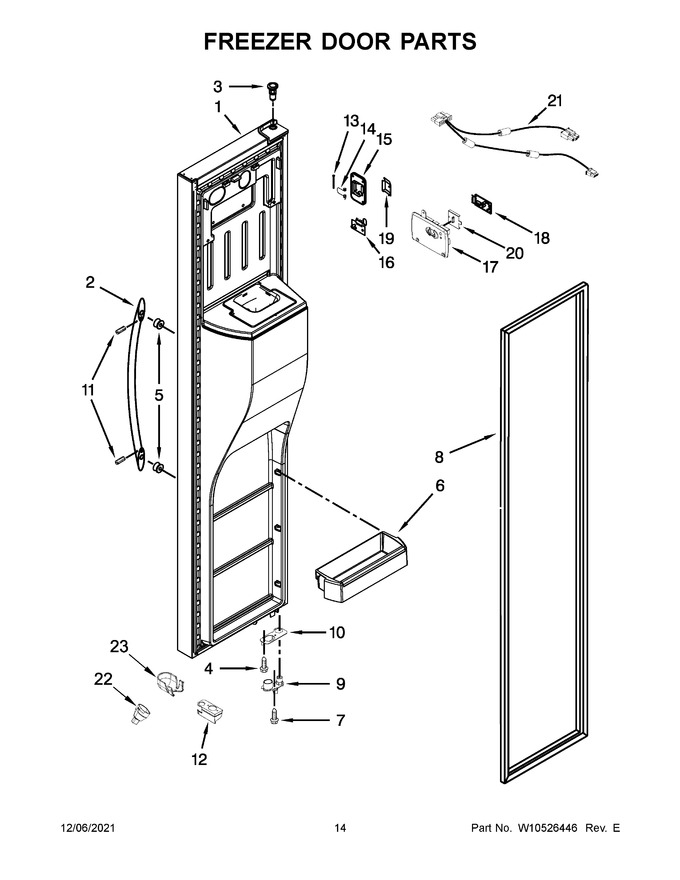

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10261130		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10899551		Handle (stainless)   (Replaces: W10678291)			Immediately	$ 188.82
3	WP2182181		Thimble, Top   (Replaces: 2200086)				$ 8.15
4	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
5	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
6	WPW10296857		Bin, Door   (Replaces: W10296857)				$ 81.31
7	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
8	WPW10247885		Door Gasket, Magnetic (beige)   (Replaces: W10247885)				$ 347.07
9	WPW10248015		Door Closer, Upper Cam (white)   (Replaces: W10248015)				$ 12.85
10	W11293380		Bracket, Door Stop   (Replaces: W10910405)				$ 69.21
11	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 15.79
12	W10632059		Cover, Door Stop (white)				$ 23.46
13	W10331749		Pin, Door		Appelez-nous	-
14	WP2198635		Spring, Door   (Replaces: 2198635)				$ 91.43
15	W10258502		Cover, Emitter				$ 89.74
16	W10870822		Board, Emitter Circuit   (Replaces: W10518659)			Immediately	$ 222.54
17	W10363396		Cover, Receiver				$ 79.77
18	W11813704		Board, Receiver Circuit   (Replaces: W10518658)			Immediately	$ 328.97
19	WPW10258520		Door, Emitter   (Replaces: W10258520)				$ 79.65
20	W10258540		Slide, Icemaker Shut Off				$ 11.15
21	W10411699		Harness, Emitter And Receiver				$ 152.79
22	W10258479		Cover, Wiring Connector		Appelez-nous	-
23	W10323148		Cover, Wire				$ 42.25
12A	W10632060		Cover, Door Stop (black)				$ 22.30
1A	W10334261		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
8A	WPW10249913		Door Gasket, Magnetic (black)   (Replaces: W10249913)				$ 321.05
9A	W11607100		Door Closer, Upper Cam (black)   (Replaces: W10257204)			Immediately	$ 13.98
