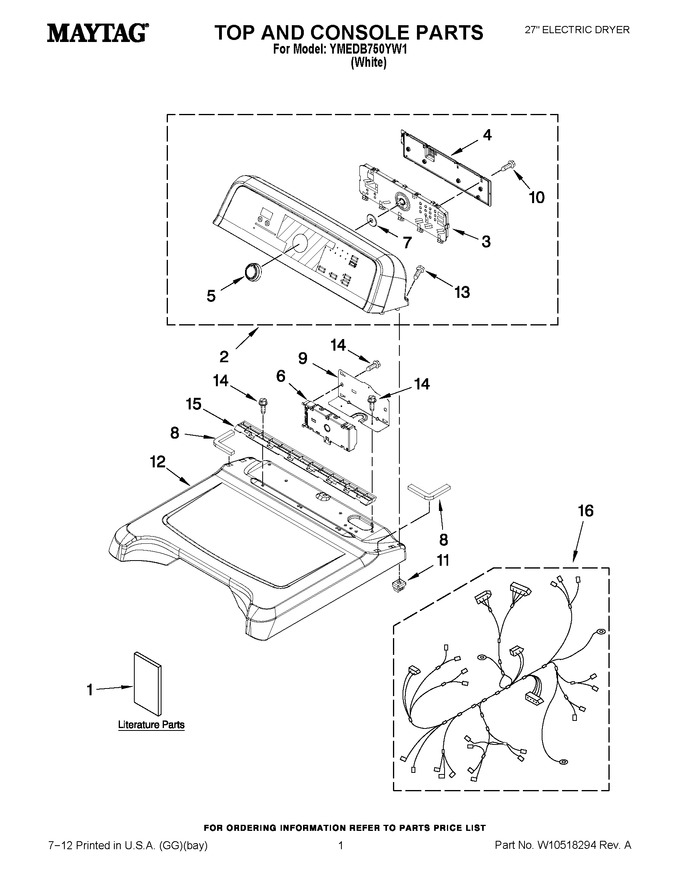

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10388780 | Use & Care Guide |
|
- | |||||
| 1 | W10393006 | Tech, Sheet |
|
- | |||||
| 1 | W10392126 | Installation, Instructions |
|
- | |||||
| 2 | W10338343 | Panel, Console |
|
$ 339.97 | |||||
| 3 | WPW10388672 | User Interface (Replaces: W10388672) |
|
$ 339.48 | |||||
| 4 | W10051124 | Cover, Rear |
|
$ 263.67 | |||||
| 5 | WPW10338554 | Knob, Assembly (Replaces: W10338554) |
|
$ 64.58 | |||||
| 6 | WPW10432257 | Control Electronic (Replaces: W10432257) |
|
Immediately | $ 333.62 | ||||
| 7 | 8572039 | Seal, Ui |
|
- | |||||
| 8 | W10219694 | Foam-top (right-side) |
|
- | |||||
| 8 | W10219695 | Foam-top (left-side) |
|
- | |||||
| 9 | 8563853 | Bracket, Machine Controller |
|
- | |||||
| 10 | WP4449745 | Screw (Replaces: W10003770) |
|
$ 7.98 | |||||
| 11 | W10112673 | Screw, Grommet |
|
$ 9.75 | |||||
| 12 | W10223157 | Top (includes Item. 8 ) |
|
$ 159.40 | |||||
| 13 | W10131402 | Screw |
|
- | |||||
| 14 | WP33001882 | Screw (Replaces: 337686) |
|
$ 83.71 | |||||
| 15 | 8558863 | Bracket, Console |
|
$ 33.78 | |||||
| 16 | W10319799 | Harness, Electric |
|
$ 176.90 |
