View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

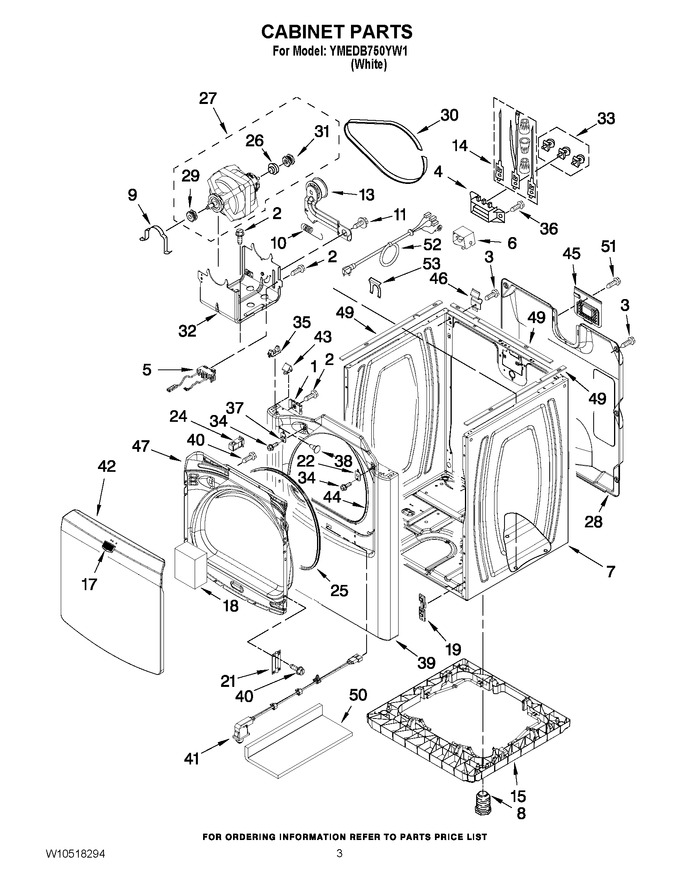

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 2 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 5 | WPW10411937 | Switch, Broken Belt (Replaces: W10314253) |
|
Immediately | $ 36.06 | ||||
| 6 | 3405248 | Cable Tie |
|
- | |||||
| 7 | W10223154 | Cabinet (includes Item 49) (Replaces: W10183827) |
|
$ 354.38 | |||||
| 8 | W10813918 | Foot, Dryer (Replaces: W10363894) |
|
Immediately | $ 13.70 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.62 | |||||
| 13 | WPW10547292 | Pulley Assembly (Replaces: 8547160) |
|
Immediately | $ 43.98 | ||||
| 14 | 279318 | Terminal, Brass & Tinned (includes Item 33) |
|
Immediately | $ 106.04 | ||||
| 15 | W10363887 | Riser, Full |
|
- | |||||
| 17 | W10492808 | Badge (Replaces: W10323735) |
|
$ 59.82 | |||||
| 18 | W10111867 | Filler, Door |
|
- | |||||
| 19 | W10854425 | Clip (Replaces: 3394083) |
|
Immediately | $ 16.34 | ||||
| 21 | WP8565018 | Hinge, Assembly (Replaces: 8565018) |
|
$ 115.34 | |||||
| 22 | WPW10111888 | Plug, Strike (Replaces: W10111888) |
|
$ 29.69 | |||||
| 24 | WPW10111905 | Catch, Door Assembly (Replaces: W10111905) |
|
Immediately | $ 7.59 | ||||
| 25 | W10239307 | Seal, Door (Replaces: W10221653) |
|
$ 141.27 | |||||
| 26 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 27 | WPW10448896 | Motor, Assembly 60 Hz. (Replaces: W10460374) |
|
Immediately | $ 343.09 | ||||
| 28 | 8558830 | Panel, Rear |
|
$ 139.44 | |||||
| 29 | W10139247 | Pulley, Blower |
|
Immediately | $ 133.55 | ||||
| 30 | WPW10136934 | Belt, Drive (Replaces: W10136934) |
|
Immediately | $ 48.60 | ||||
| 31 | W10136930 | Pulley, (motor Drum) |
|
$ 48.18 | |||||
| 32 | 8547158 | Bracket, Motor |
|
$ 65.31 | |||||
| 33 | 279393 | Terminal Block Screw Kit (for Terminal Block |
|
Immediately | $ 55.66 | ||||
| 34 | WP3400805 | Screw (Replaces: 3400805) |
|
$ 7.55 | |||||
| 35 | WP8568303 | Locator, Snap Down (Replaces: 8568303) |
|
$ 7.94 | |||||
| 36 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 37 | W10295405 | Strike, Door (Replaces: W10111906) |
|
$ 115.09 | |||||
| 38 | W10144494 | Plug, Hole |
|
$ 35.14 | |||||
| 39 | W10463261 | Front Panel |
|
$ 165.97 | |||||
| 40 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 41 | W11177687 | Door Switch Assembly (Replaces: W10350909) |
|
$ 88.15 | |||||
| 42 | WPW10111876 | Door, Outer (Replaces: W10111876) |
|
$ 205.13 | |||||
| 43 | WP8576625 | Lock, Top Front (Replaces: 8576625) |
|
$ 7.60 | |||||
| 44 | W10044490 | Seal, Front Panel |
|
$ 34.05 | |||||
| 45 | W10110241 | Cover, Terminal Block |
|
$ 43.62 | |||||
| 46 | WP8066217 | Hinge, Top (Replaces: 238088) |
|
$ 8.21 | |||||
| 47 | W10111879 | Door, Inner |
|
$ 80.48 | |||||
| 49 | WPW10157932 | Seal, Foam (Replaces: W10316529) |
|
Immediately | $ 8.45 | ||||
| 50 | W11037143 | Cover, Door Switch (Replaces: W10215725) |
|
- | |||||
| 51 | W10850756 | Screw Ground (Replaces: 8533974) |
|
$ 8.20 | |||||
| 52 | W11095079 | Power Cord (Replaces: 8529008) |
|
Immediately | $ 138.24 | ||||
| 53 | W11712577 | Strain-relief Clip (Replaces: 694415) |
|
Immediately | $ 7.77 | ||||
| NI | 49621 | Foot - Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
