View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

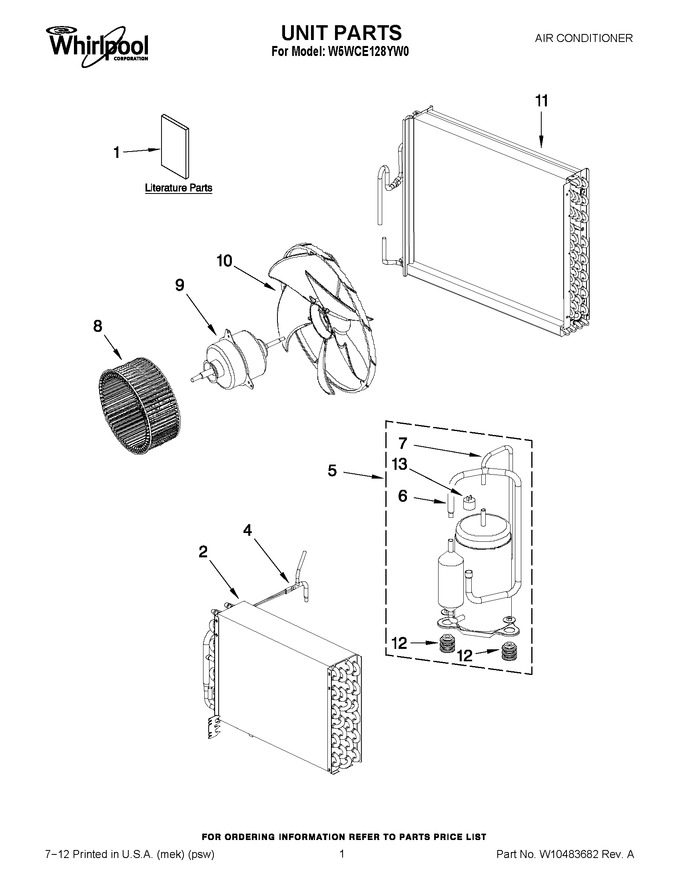

01 - Unit Parts
02 - Air Flow And Control Parts
03 - Cabinet Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10369626 | Wiring Diagram |
|
- | |||||
| 1 | W10369331 | Use & Care Guide |
|
- | |||||
| 1 | W10369633 | Energy Guide |
|
- | |||||
| 2 | W10362768 | Evaporator |
|
- | |||||
| 4 | W10362804 | Tube-restr |
|
- | |||||
| 5 | W10362800 | Compressor |
|
- | |||||
| 6 | W10362776 | Tube-inlet |
|
- | |||||
| 7 | W10362232 | Discharge Tube |
|
- | |||||
| 8 | W10362785 | Wheel, Blower |
|
- | |||||
| 9 | WPW10362806 | Motor-fan (Replaces: W10362806) |
|
$ 325.41 | |||||
| 10 | W10484833 | Blade-fan |
|
- | |||||
| 11 | WPW10362766 | Condenser (Replaces: W10362766) |
|
$ 380.81 | |||||
| 12 | W10362764 | Gasket |
|
- | |||||
| 13 | W10362802 | Overload |
|
- | |||||
| NI | N/P | Refrigerant Charge (14.00 Oz.) |
|
- |
