SELECT A DIAGRAM

01 - Unit Parts


02 - Air Flow And Control Parts

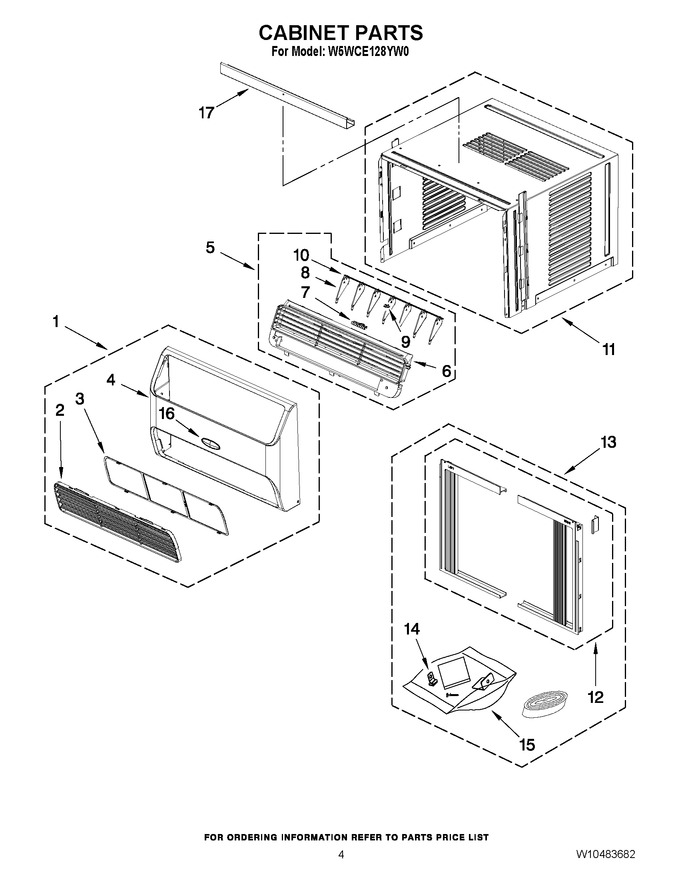

03 - Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10484820		Front Pnl Assy   (Replaces: W10484820)				$ 179.47
2	W10484822		Air Inlet Frame		Appelez-nous	-
3	WPW10368340A		Filter Assy   (Replaces: W10368340)				$ 18.16
4	W10484821		Front Panel		Appelez-nous	-
5	W10361852		Air Outlet Fr Assy		Appelez-nous	-
6	W10476318		Air Outlet Frame		Appelez-nous	-
7	W10476326		Manual Lever		Appelez-nous	-
8	W10476323		Air Louver 2		Appelez-nous	-
9	W10476324		Air Louver 1		Appelez-nous	-
10	W10361856		Swing Lever		Appelez-nous	-
11	W10484829		Cabinet Assy		Appelez-nous	-
12	WPW10368210		Curtain Assy   (Replaces: W10368210)				$ 127.98
13	W10368211		Mtg Accessories		Appelez-nous	-
14	W10368212		Clamp		Appelez-nous	-
15	W10368214		Scr Accessories		Appelez-nous	-
16	8209797		Nameplate		Appelez-nous	-
17	W10388580		Top Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
