SELECT A DIAGRAM

01 - Top And Console Parts

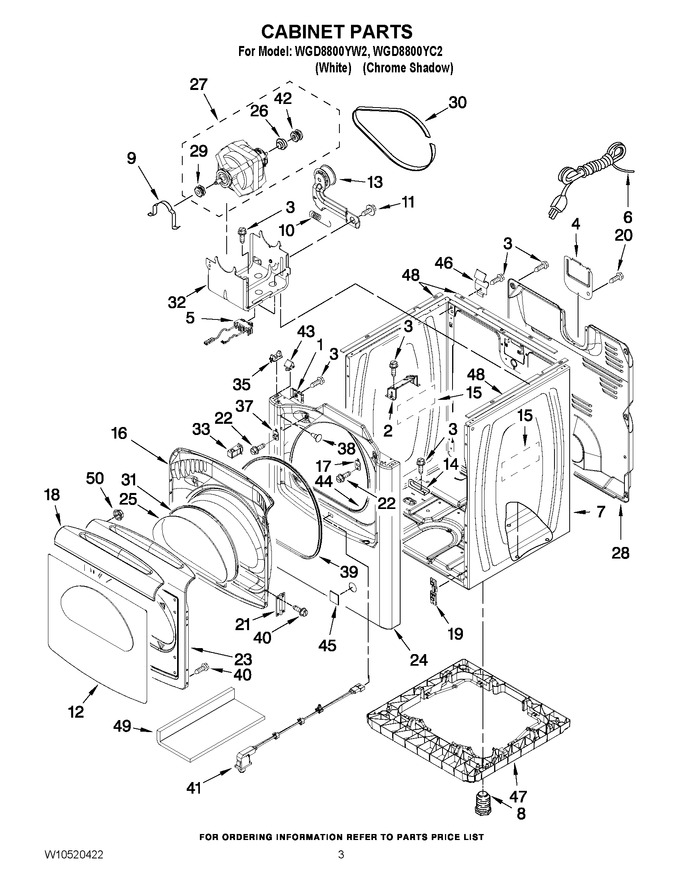

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 11.96
2	8544753		Bracket, Burner		Appelez-nous	-
3	WP3390631		Screw   (Replaces: 3390631)				$ 8.25
4	W11736322		Plate, Cover Terminal Block   (Replaces: 8558833)		Appelez-nous	-
5	WPW10411937		Switch, Broken Belt   (Replaces: W10314253)			Immediately	$ 36.06
6	W11222083		Cord, Power   (Replaces: W10440460)				$ 126.62
7	W10223154		Cabinet (white)   (Replaces: W10183827)				$ 354.38
7	W10391494		Cabinet (chrome Shadow)				$ 335.36
8	W10813918		Foot, Dryer   (Replaces: W10363894)			Immediately	$ 13.70
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	8578931		Window, Outer Door				$ 164.08
13	WPW10547292		Pulley Assembly   (Replaces: 8547160)			Immediately	$ 43.98
14	W10201446		Bracket-gas Pipe		Appelez-nous	-
15	W10123956		Dampening Panel		Appelez-nous	-
16	8571357		Door, Inner				$ 143.15
17	WPW10111888		Plug, Strike   (Replaces: W10111888)				$ 29.69
18	WPW10402478		Handle, Door Cover   (Replaces: W10402478)				$ 213.70
19	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 16.34
20	W10850756		Screw   (Replaces: 8533974)				$ 8.20
21	WP8565018		Hinge, Assembly (white)   (Replaces: 8565018)				$ 115.34
21	W10463338		Hinge Assembly (chrome Shadow)		Appelez-nous	-
22	WP3400805		Screw   (Replaces: 3400805)				$ 7.55
23	W10391506		Door, Outer (chrome Shadow)				$ 138.25
23	8571365		Door, Outer (white)				$ 70.67
24	W10463266		Panel, Front (chrome Shadow)		Appelez-nous	-
24	WPW10463262		Panel, Front (white)   (Replaces: W10463262)				$ 362.65
25	8558846		Glass, Inner Door				$ 120.50
26	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
27	WPW10448896		Motor, Assembly 60 Hz.   (Replaces: W10396036)			Immediately	$ 343.09
28	W10140148		Panel, Rear				$ 139.84
29	8544743		Pulley, Blower				$ 74.26
30	WP8547157		Belt, Drive   (Replaces: 8547157)			Immediately	$ 65.46
31	W10076050		Seal, Window				$ 121.65
32	8547158		Bracket, Motor				$ 65.31
33	WPW10111905		Catch, Door Assembly   (Replaces: W10111905)			Immediately	$ 7.59
35	WP8568303		Locator, Snap Down   (Replaces: 8568303)				$ 7.94
37	W10295405		Assembly, Strike & Plate   (Replaces: W10111906)				$ 115.09
38	W10144494		Plug, Hole				$ 35.14
39	W10239307		Seal, Door   (Replaces: W10221653)				$ 141.27
40	WP488627		Screw   (Replaces: 342055)				$ 8.11
41	WPW10350907		Door Switch Assembly   (Replaces: W10350907)				$ 90.16
42	WP8547171		Pulley, Drum Motor   (Replaces: 8547171)				$ 149.66
43	WP8576625		Lock, Top Front   (Replaces: 8576625)				$ 7.60
44	W10044490		Seal, Front Panel				$ 34.05
45	W10811916		Plug, Front Panel (white)   (Replaces: 8564457)				$ 16.50
45	W10391496		Plug, Front Panel (chrome Shadow)		Appelez-nous	-
46	WP8066217		Hinge, Top   (Replaces: 238088)				$ 8.21
47	W10363887		Riser-full		Appelez-nous	-
48	WPW10157932		Seal, Foam (iec)   (Replaces: W10316529)			Immediately	$ 8.45
49	W11037143		Cover, Door Switch   (Replaces: W10215725)		Appelez-nous	-
50	WP308499		Nut-1/4 Hf Self-thread   (Replaces: 308499)				$ 7.30

    View Diagram in Separate Window       Print Part List
