SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts

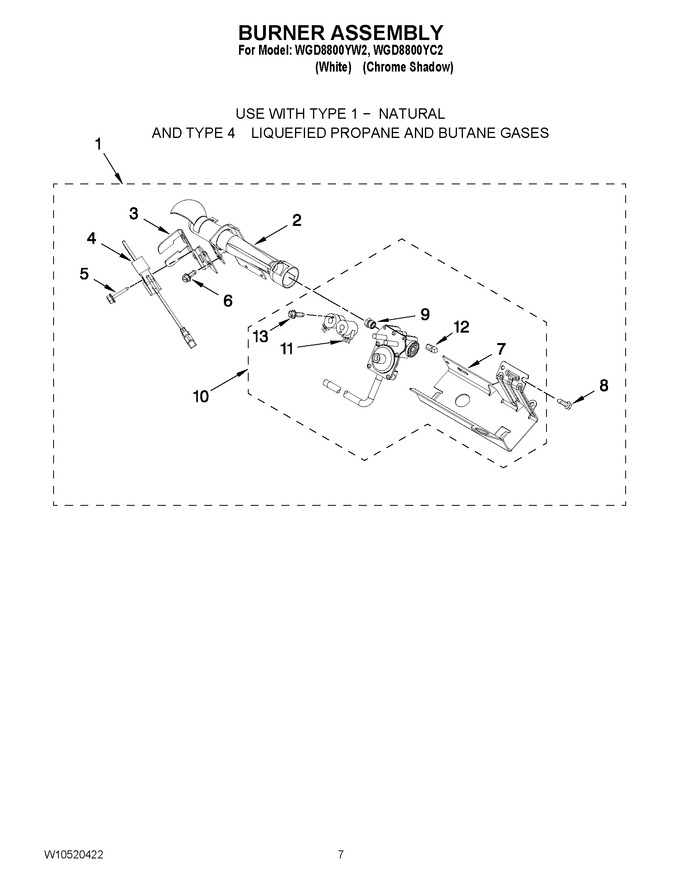

04 - Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8557891		Burner Assembly 60 Hz. (type 1)   (Replaces: W10398742)				$ 373.98
2	WPW10536683		Tube, Burner   (Replaces: 8573010)				$ 178.07
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 27.22
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
5	WPW10366705		Screw & Washer (8-32 X 5/8)   (Replaces: 3393909)				$ 7.88
6	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
7	W10183823		Base, Burner		Appelez-nous	-
8	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 7.55
9	WP229742		Orifice, Burner (type 4)   (Replaces: 229742)				$ 36.59
9	WP15418		Orifice, Burner Type 1   (Replaces: 15418)				$ 37.32
10	WP8573071		Valve, Gas 60 Hz. (complete) (includes Pipe & Illus. No. 7)   (Replaces: W10304606)				$ 416.96
11	WPW10368268		Coil, 60 Hz.   (Replaces: W10368268)				$ 186.57
12	W10295523		Plug, Pipe		Appelez-nous	-
13	326049536		Screw, Coil		Appelez-nous	-
NI	W11581317		Conversion Kit (type 4)l.p.g. To Type (1)nat.   (Replaces: W10317689)			Immediately	$ 93.17

    View Diagram in Separate Window       Print Part List
