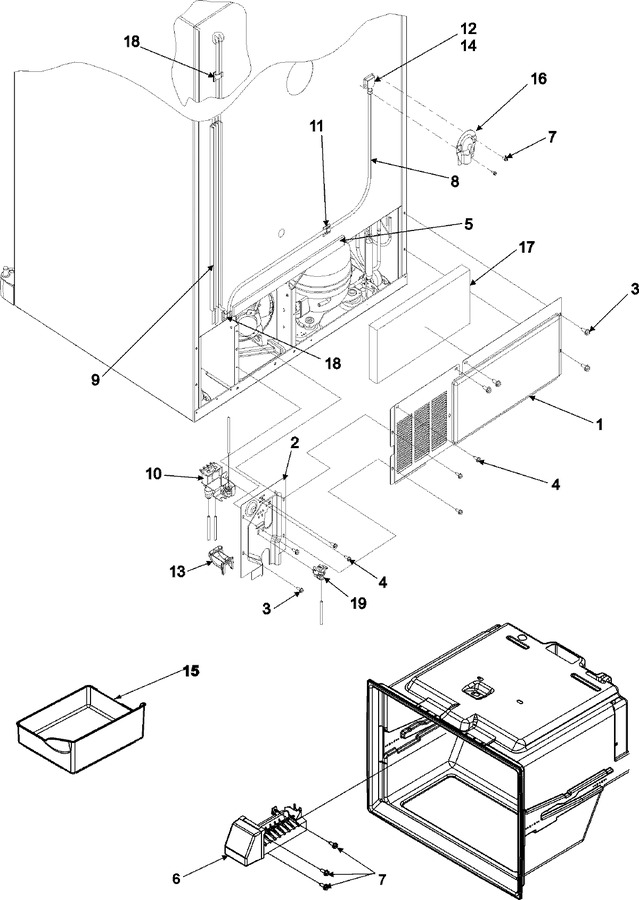

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006101		Cover, Mc Back	10			$ 76.68
2	67004098		Cover, Water Valve	10	Appelez-nous	-
3	67006425		Screw, Sm	10		Immediately	$ 7.30
4	WP489128		Screw   (Replaces: 67006662)	10			$ 10.88
5	B5759649		Gasket, Mc Back	10	Appelez-nous	-
6	WPW10289690		Cover, Ice Maker   (Replaces: 67004710)	10		Immediately	$ 8.40
6	D7824706Q		Ice Maker Assy.	10		Immediately	$ 167.35
6	WP67004028		Arm, Im Shutoff   (Replaces: 67004028)	10		Immediately	$ 91.35
6	WPD7813010		Harness, Ice Maker   (Replaces: 67006614)	10		Immediately	$ 73.97
7	WP98165		Screw   (Replaces: 67006287)	10			$ 8.00
8	WPB5705307		Tube, Plastic   (Replaces: 67003729)	10			$ 12.43
8	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)	10		Immediately	$ 7.82
9	M0104102		Clip, Cord	10			$ 8.10
10	WP67006531		Valve, Dual Water   (Replaces: 67006531)	10		Immediately	$ 167.68
11	WPM0104106		Clip   (Replaces: M0104106)	10			$ 7.78
12	WPM0114003		Clip, Speed   (Replaces: M0114003)	10			$ 11.05
12	W11176463		Elbow, Fill Tube   (Replaces: 10463201)	10		Immediately	$ 114.15
13	67004102		Track, Waterline	10			$ 31.99
15	WP67001255		Pan, Ice   (Replaces: 67001255)	10			$ 203.08
16	12726003		Cover, Water Line   (Replaces: 67003331)	10			$ 19.19
17	67003796		Fiber, Acoustic	10			$ 19.27
18	67002816		Clip, Waterline	10			$ 19.15
NI	12831101		Sweep, Dual Tube   (Replaces: 67004101)	10			$ 13.03
NI	WP67006506		Cord, Power   (Replaces: 12583301)	10			$ 26.42
