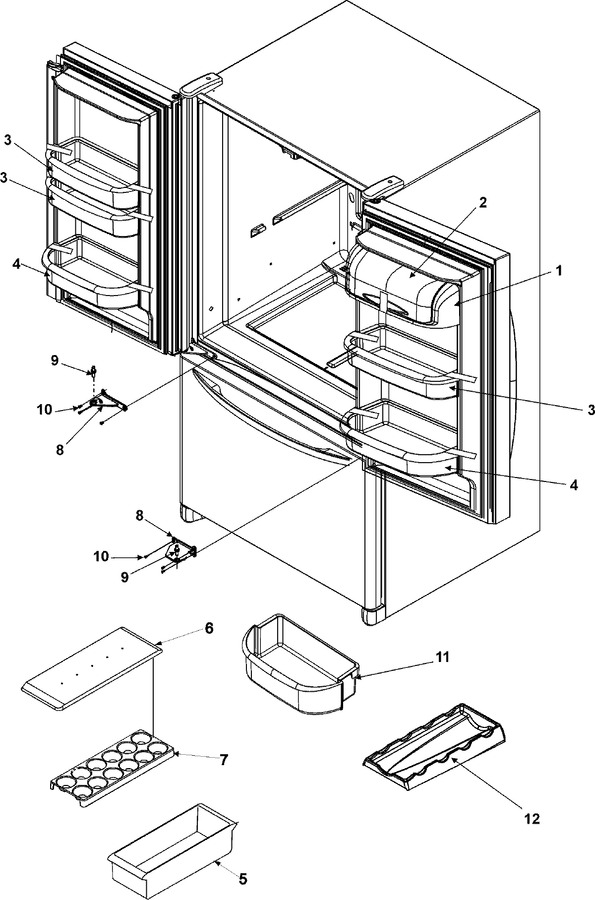

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP12744905		Dairy Assy   (Replaces: 67003819)	10			$ 113.99
2	WP67001279		Tray, Dairy   (Replaces: 67001279)	10		Immediately	$ 88.01
3	WPW10371193		Bucket Assy, Ref. (med W/grip)   (Replaces: 67003770)	10		Immediately	$ 74.80
3	67003212		Gripper, Bucket	10	Appelez-nous	-
4	12699207		Bucket Ref Door Assy	10	Appelez-nous	-
4	67005453		Gripper, Bkt French Door Gal	10	Appelez-nous	-
5	10423131		Bin, Utility	10			$ 31.13
6	10436404		Lid, Utility	10			$ 60.85
7	10436506		Tray, Egg	10			$ 8.28
8	W10918164		Hinge, Center (rt-blk)   (Replaces: 67006443)	10			$ 91.53
9	WP67006642		Pin, Center Hinge   (Replaces: 67002734)	10			$ 8.78
10	W11573362		Screw   (Replaces: 67006380)	10			$ 14.72
11	WPW10289497		Bucket, Ref Door (gal)   (Replaces: 67005258)	10		Immediately	$ 81.09
12	67001656		Trivet, Bottle	10			$ 72.49

    View Diagram in Separate Window       Print Part List
