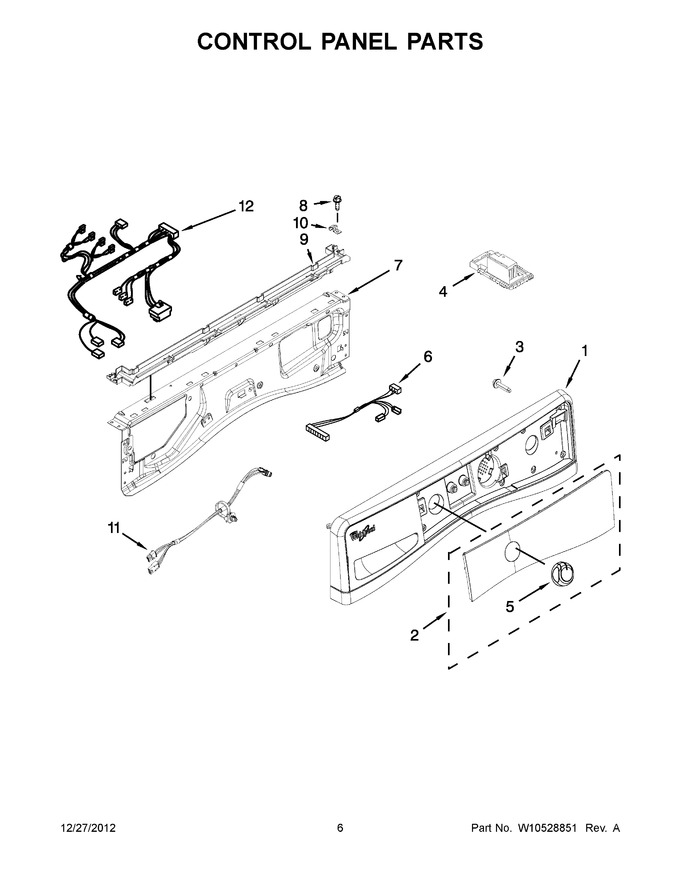

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10446409 | Console Assembly (white) |
|
$ 238.43 | |||||
| 2 | WPW10446421 | Iml Assembl (white) (Replaces: W10391531) |
|
$ 659.97 | |||||
| 3 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 4 | W10422888 | Control Unit, Central |
|
$ 413.24 | |||||
| 5 | W10391535 | Knob Assembly |
|
$ 25.18 | |||||
| 6 | WPW10486216 | Harness, Ui Jumper (Replaces: W10486216) |
|
$ 18.00 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 174.54 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 8.38 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10317570) |
|
$ 90.94 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 9.16 | |||||
| 11 | WPW10486571 | Harness, Ui (Replaces: W10486571) |
|
$ 19.47 | |||||
| 12 | W10422436 | Harness, Main (upper) |
|
- | |||||
| 1A | W10463529 | Console Assembly (chrome Shadow) |
|
$ 179.28 | |||||
| 2A | W10463522 | Iml Assembl (chrome Shadow) |
|
- |
