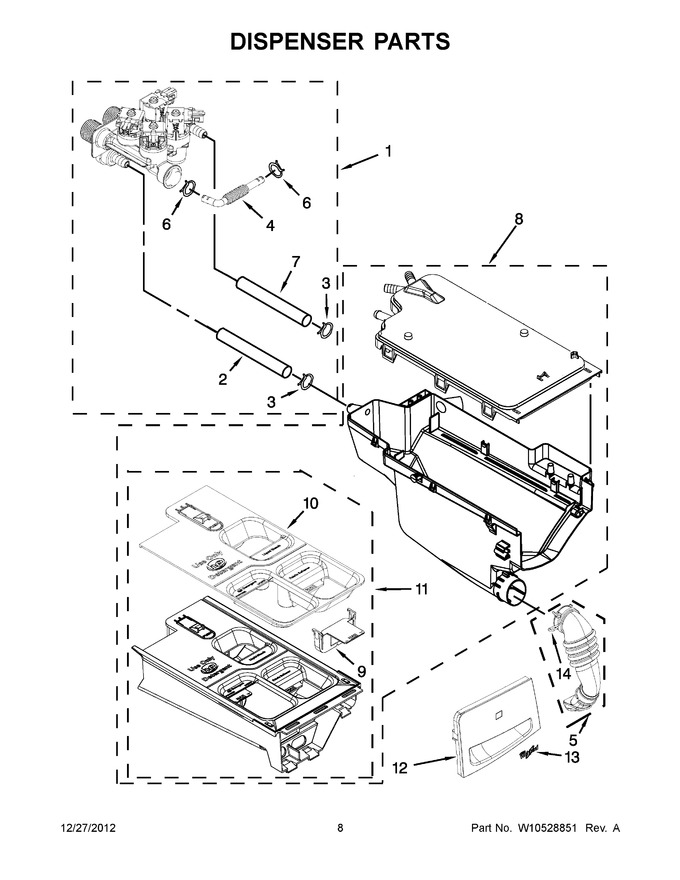

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10435242 | Valve, Inlet Assembly (Replaces: W10435242) |
|
Immediately | $ 153.40 | ||||
| 2 | WPW10577770 | Hose, Grey (Replaces: W10435239) |
|
$ 31.59 | |||||
| 3 | WP596669 | Clamp, Hose (Replaces: 9724997) |
|
Immediately | $ 8.82 | ||||
| 4 | W10435238 | Hose, Steam |
|
$ 83.74 | |||||
| 5 | WPW10239966 | Hose, Dispenser To Bellow (Replaces: W10239966) |
|
$ 87.10 | |||||
| 6 | WP596669 | Clamp, Hose (Replaces: W10096852) |
|
Immediately | $ 8.82 | ||||
| 7 | WPW10577787 | Hose, Black (Replaces: W10435240) |
|
$ 31.14 | |||||
| 8 | W10575334 | Housing, Dispenser Assembly (Replaces: W10365881) |
|
$ 222.25 | |||||
| 9 | W11084830 | Separator, With Selection Slider (Replaces: W10411442) |
|
$ 180.26 | |||||
| 10 | WPW10365887 | Siphon, Bleach/softener (Replaces: W10365887) |
|
Immediately | $ 98.54 | ||||
| 11 | WPW10365885 | Drawer, Detergent (complete) (Replaces: W10365885) |
|
$ 115.17 | |||||
| 12 | WPW10446403 | Handle, Drawer (includes Item 13) (white) (Replaces: W10446403) |
|
$ 78.87 | |||||
| 13 | W11178521 | Badge (white) (Replaces: W10387117) |
|
Immediately | $ 63.13 | ||||
| 14 | W10239910 | Clamp, Hose |
|
Immediately | $ 65.30 | ||||
| 12A | WPW10446405 | Handle, Drawer (includes Item 13) (chrome Shadow) (Replaces: W10446405) |
|
$ 93.87 |
