SELECT A DIAGRAM
01 - Top And Cabinet Parts

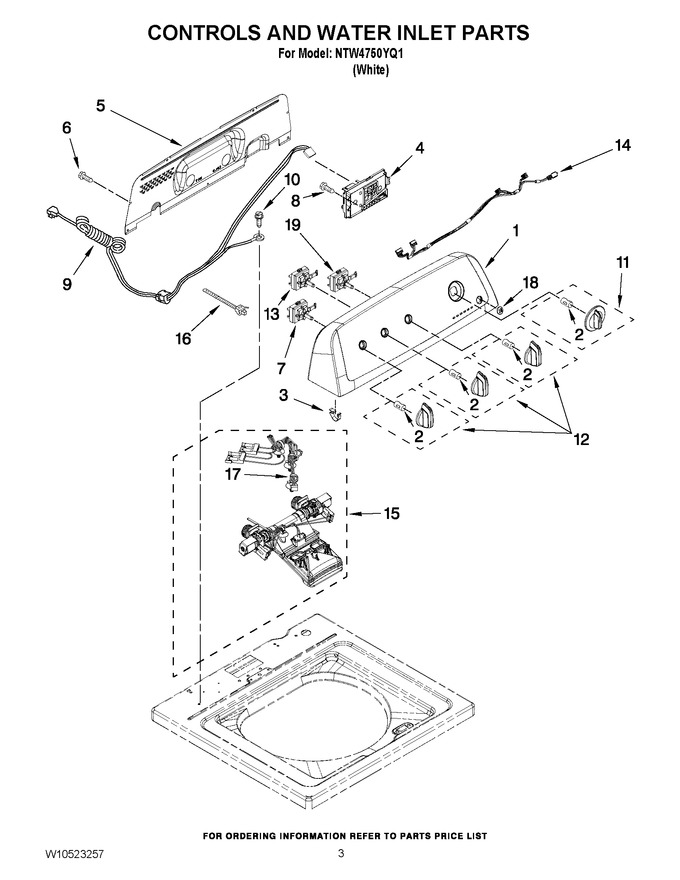

02 - Controls And Water Inlet Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10420446 | Panel, Console (Replaces: W10420446) |
|
$ 350.51 | |||||
| 2 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 3 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 4 | W10484686 | Control Unit Assembly, Machine & Motor |
|
$ 529.87 | |||||
| 5 | W10409320 | Panel, Console Rear Cover |
|
$ 263.79 | |||||
| 6 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 7 | W10859568 | Switch, Temperature (Replaces: W10414411) |
|
Immediately | $ 188.32 | ||||
| 8 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 9 | WPW10525192 | Cord, Power (Replaces: W10455732) |
|
$ 163.02 | |||||
| 10 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 11 | WPW10711289 | Knob, Timer (Replaces: W10453946) |
|
Immediately | $ 8.33 | ||||
| 12 | WPW10453947 | Knob, Control (Replaces: W10453947) |
|
$ 54.76 | |||||
| 13 | WPW10414398 | Switch, Rotary Encoder (Replaces: W10414398) |
|
$ 199.56 | |||||
| 14 | W10491753 | Harness, Upper |
|
- | |||||
| 15 | WPW10683603 | Inlet Assembly, Water (Replaces: W10423125) |
|
Immediately | $ 81.56 | ||||
| 16 | WPW10339879 | Cable Tie (Replaces: W10339879) |
|
$ 8.30 | |||||
| 17 | W10876654 | Harness, Valve (Replaces: W10423127) |
|
$ 194.92 | |||||
| 18 | WPW10251309 | Pushbutton, Start (Replaces: W10251309) |
|
Immediately | $ 76.00 | ||||
| 19 | W11168256 | Switch, Rotary Encoder (Replaces: W10414381) |
|
Immediately | $ 219.11 |
