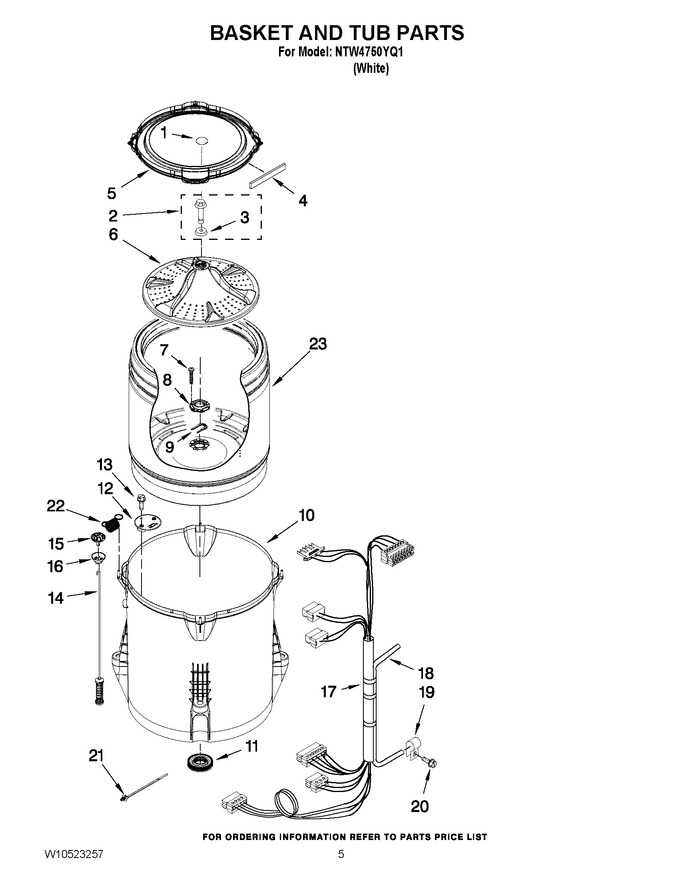

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10305259		Cap, Impeller   (Replaces: W10305259)				$ 23.63
2	W10772621		Screw & Washer Assembly   (Replaces: W10003790)			Immediately	$ 5.24
3	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 11.09
4	W10205824		Absorber, Impact				$ 80.64
5	W10215146		Ring, Tub (includes Item 4)				$ 84.89
6	WPW10215115		Impeller   (Replaces: W10215118)				$ 313.32
7	WP8533953		Screw   (Replaces: 8533953)			Immediately	$ 7.55
8	W10528947		Hub - Driven, Basket (includes Items 7 & 9)   (Replaces: W10396887)			Immediately	$ 44.23
9	W11385424		Retainer   (Replaces: W10402178)			Immediately	$ 12.97
10	W10324648		Tub (includes Item 11)   (Replaces: W10238301)				$ 361.85
11	W10324647		Seal, Tub   (Replaces: W10006371)			Immediately	$ 93.50
12	WPW10215093		Filter, Drain Pump   (Replaces: W10215093)				$ 65.26
13	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
14	W10780051		Damper Assembly, Tub Suspension (set Of 4-includes Items 15 & 16)   (Replaces: W10257086)			Immediately	$ 248.97
15	W10405423		Ball, Suspension (set Of 4 - Includes Item 16)		Appelez-nous	-
16	W10256551		Bushing, Suspension (set Of 4 - Includes Item 15)		Appelez-nous	-
17	WPW10383573		Harness, Lower (includes Items 18 & 21)   (Replaces: W10383573)				$ 218.96
18	WP353244		Hose, Pressure Switch   (Replaces: W10429300)			Immediately	$ 59.93
19	W10005430		Clamp, Pressure Hose Retainer			Immediately	$ 9.53
20	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 8.80
21	WPW10298887		Cable Tie   (Replaces: W10298887)				$ 7.98
22	W10400895		Spring, Tub Centering   (Replaces: W10348658)			Immediately	$ 10.38
23	WPW10521297		Basket Assembly (includes Items 7, 8 & 9)   (Replaces: W10469848)				$ 512.88
