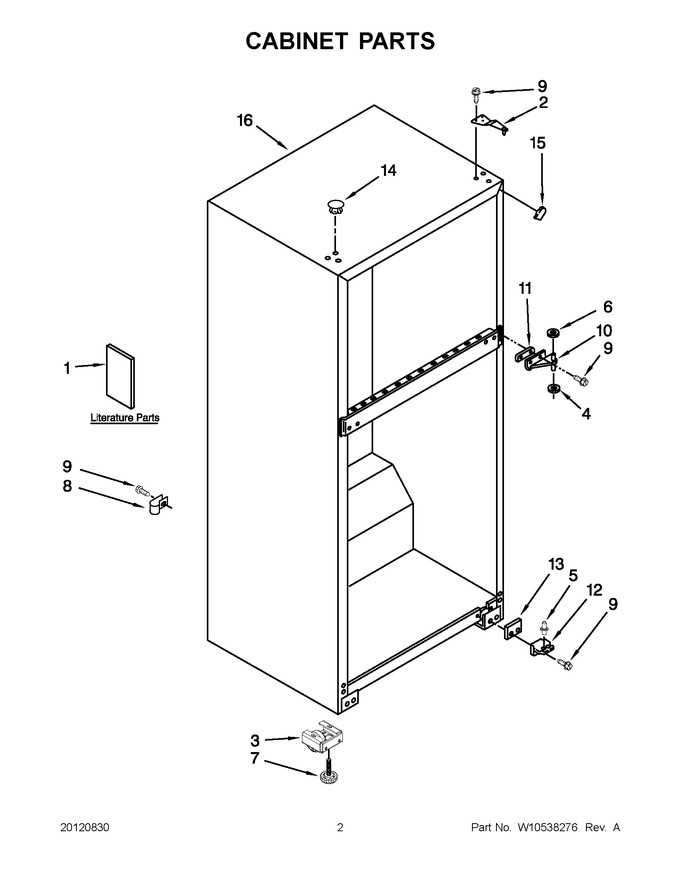

01 - Cabinet Parts
02 - Liner & Miscellaneous
03 - Shelf Parts
04 - Door Parts
05 - Unit Parts
06 - Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10231719 | Energy Label |
|
- | |||||
| 1 | W10489593 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2316016 | Use & Care Guide |
|
- | |||||
| 2 | WP2261963 | Assembly, Hinge, Top (Replaces: 2261963) |
|
Immediately | $ 119.42 | ||||
| 3 | WPW10142530 | Assembly, Roller (Replaces: W10142530) |
|
Immediately | $ 118.10 | ||||
| 4 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 5 | WP2325483 | Pin, Bottom Hinge (Replaces: 2325483) |
|
Immediately | $ 7.55 | ||||
| 6 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 10.74 | ||||
| 7 | WPW10133299 | Leveler (Replaces: W10133299) |
|
$ 12.35 | |||||
| 8 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 9 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 10 | WP2166037 | Hinge Assembly, Center (Replaces: 2166086) |
|
$ 85.08 | |||||
| 11 | 2166043 | Shim, Center Hinge |
|
$ 69.76 | |||||
| 12 | WP2325482 | Hinge, Bottom (Replaces: 2325482) |
|
Immediately | $ 80.00 | ||||
| 13 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
Immediately | $ 8.16 | ||||
| 14 | 2200924 | Hole Plug (biscuit/bisque) |
|
- | |||||
| 14 | WP2151652 | Hole Plug (white) (Replaces: 2201012) |
|
$ 22.87 | |||||
| 15 | W10859322 | Corner Filler (white) (Replaces: 2166003) |
|
$ 8.09 | |||||
| 15 | 2202282 | Corner Filler (biscuit/bisque) |
|
- | |||||
| 16 | N/P | Cabinet (not A Serviceable Part) |
|
- |
