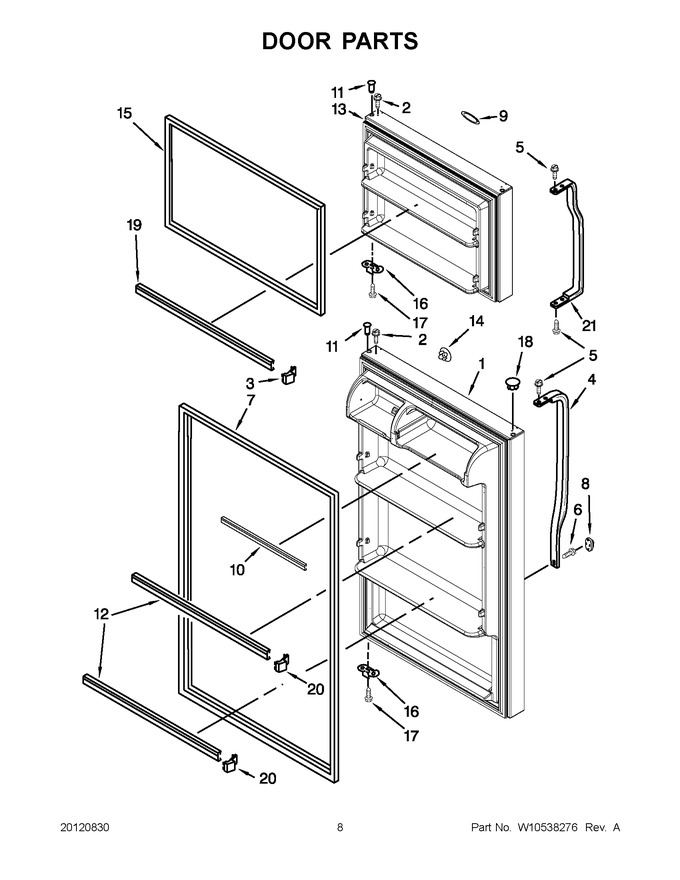

04 - Door Parts
05 - Unit Parts
06 - Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2316002T | Refrigerator Door (includes Illus. 7 & 14) (biscuit/bisque) |
|
- | |||||
| 1 | 2316002W | Refrigerator Door (includes Illus. 7 & 14) (white) |
|
- | |||||
| 2 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 3 | WP2156003 | End Cap, Door Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 4 | WP2221946T | Handle, Refrigerator (biscuit/bisque) (Replaces: 2221946T) |
|
$ 152.26 | |||||
| 4 | WP2221946W | Handle, Refrigerator (white) (Replaces: 2221946W) |
|
Immediately | $ 130.11 | ||||
| 5 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 6 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 7 | WP2319266T | Door Gasket, Magnetic Beige (Replaces: W10190034) |
|
$ 171.60 | |||||
| 8 | 2202819T | Screw Cover (biscuit/bisque) |
|
$ 8.02 | |||||
| 8 | WP2202819W | Screw Cover (white) (Replaces: 2202819W) |
|
Immediately | $ 8.14 | ||||
| 9 | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 63.13 | ||||
| 9 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 63.13 | ||||
| 10 | W11129820 | Trim, Door (Replaces: W10234242) |
|
Immediately | $ 127.34 | ||||
| 11 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 8.14 | |||||
| 12 | WP2266738 | Trim, Door (Replaces: 2266738) |
|
$ 111.69 | |||||
| 13 | 2263254T | Freezer Door (biscuit/bisque) |
|
- | |||||
| 13 | 2263254W | Freezer Door (white) |
|
- | |||||
| 14 | WP2200936 | Hole Plug, Handle (biscuit/bisque) (Replaces: 2200936) |
|
$ 7.97 | |||||
| 14 | WP2189000 | Hole Plug, Handle (white) (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 15 | WP2319263T | Door Gasket, Magnetic (beige) (Replaces: W10190031) |
|
Immediately | $ 215.86 | ||||
| 16 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 17 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 18 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 18 | WP2212649 | Hole Plug (biscuit/bisque) (Replaces: 2212649) |
|
$ 7.99 | |||||
| 19 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 120.57 | ||||
| 20 | WP2195916K | Endcap, Door Trim (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 21 | WP2202098 | Handle, Freezer (white) (Replaces: 2202098) |
|
$ 156.82 | |||||
| 21 | WP2215015 | Handle, Freezer (biscuit/bisque) (Replaces: 2215015) |
|
$ 153.23 |
