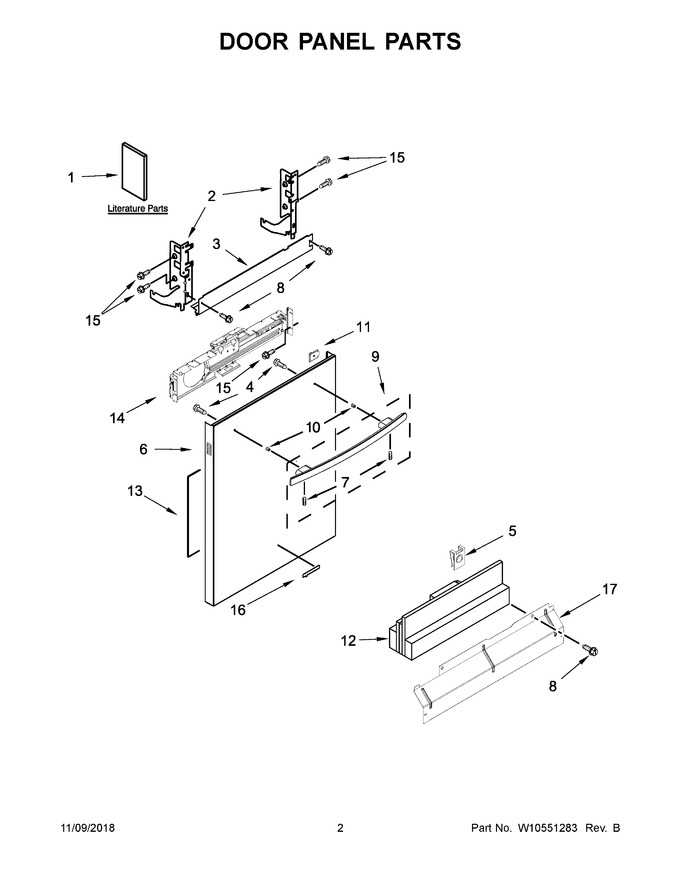

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10501738 | Installation Instructions |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 3 | W10850371 | Vapor Barrier Assembly (Replaces: W10726647) |
|
Immediately | $ 32.88 | ||||
| 4 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 7.55 | ||||
| 5 | W10910629 | U-nut (Replaces: W10853886) |
|
$ 8.64 | |||||
| 6 | W10409495 | Panel, Front (includes Items 4, 11 & 16) (stainless) |
|
$ 202.84 | |||||
| 7 | W10276608 | Screw, Set |
|
$ 46.73 | |||||
| 8 | WP302868 | Screw (black) (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 9 | W10409496 | Handle Assembly (stainless) |
|
$ 121.76 | |||||
| 10 | WP8564951 | Stud, Mounting (Replaces: 8564951) |
|
Immediately | $ 19.33 | ||||
| 11 | W10319007 | Light, Pipe |
|
$ 72.00 | |||||
| 12 | W10831329 | Insulation, Four Layer (Replaces: W10518815) |
|
Immediately | $ 43.30 | ||||
| 13 | W11126003 | Insulation, Front Panel (Replaces: W10315897) |
|
Immediately | $ 65.25 | ||||
| 14 | WPW10350242 | Bracket, Control (Replaces: W10350242) |
|
$ 88.32 | |||||
| 15 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 16 | WPW10214168 | Nameplate (stainless) (Replaces: W10214168) |
|
$ 85.95 | |||||
| 17 | W11763736 | Access Panel (black) (Replaces: W10852733) |
|
Immediately | $ 42.25 | ||||
| 1A | W10638767 | Energy Guide |
|
- | |||||
| 1B | W10596235 | Use & Care Guide, English/french |
|
- | |||||
| 1C | W10543820 | Tech Sheet, English |
|
- | |||||
| 1D | W10543821 | Tech Sheet, French |
|
- | |||||
| 2A | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 142.24 |
