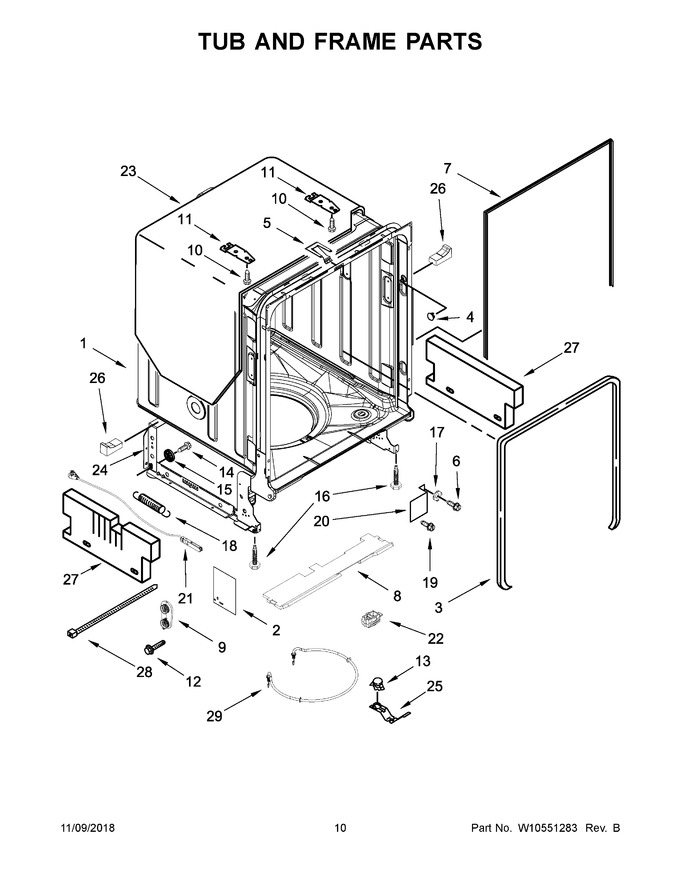

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10511198 | Tub Assembly (also Includes Heater Assembly) (Replaces: W10511186) |
|
$ 528.70 | |||||
| 2 | W10609495 | Cover, Fill Valve |
|
- | |||||
| 3 | W11177741 | Gasket, Tub (Replaces: W10300924) |
|
Immediately | $ 72.39 | ||||
| 4 | W10795980 | Plug, Tub (Replaces: W10082838) |
|
Immediately | $ 13.55 | ||||
| 5 | WPW10300779 | Strike, Latch (Replaces: W10300779) |
|
Immediately | $ 91.23 | ||||
| 6 | WP3400014 | Screw, Grounding (Replaces: 3400014) |
|
$ 7.42 | |||||
| 7 | W10864081 | Seal, Cabinet (Replaces: W10179427) |
|
Immediately | $ 75.88 | ||||
| 8 | W11747584 | Sound Insulation, Bottom (Replaces: W10819539) |
|
Immediately | $ 25.77 | ||||
| 9 | WPW10084086 | Door Balance Assembly (Replaces: W10084086) |
|
Immediately | $ 29.72 | ||||
| 10 | WP308685 | Screw (Replaces: 3367670) |
|
Immediately | $ 7.08 | ||||
| 11 | WP8269145 | Bracket, Undercounter (Replaces: 8269145) |
|
Immediately | $ 17.40 | ||||
| 12 | WP3400074 | Screw (Replaces: 3400074) |
|
Immediately | $ 6.80 | ||||
| 13 | WPW10195091 | Thermostat (Replaces: W10195091) |
|
Immediately | $ 36.55 | ||||
| 14 | WPW10348411 | Screw (Replaces: W10348411) |
|
$ 9.74 | |||||
| 15 | WP8268977 | Wheel, Leg (Replaces: 8268977) |
|
$ 13.67 | |||||
| 16 | 8193716 | Leveler, Leg (Replaces: W10619352) |
|
$ 80.06 | |||||
| 17 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 10.63 | |||||
| 18 | WP8270020 | Spring, Door Balance (Replaces: 8270020) |
|
Immediately | $ 33.02 | ||||
| 19 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 7.42 | |||||
| 20 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 26.58 | |||||
| 21 | 8194001 | Cable, Door (Replaces: W10158291) |
|
Immediately | $ 38.75 | ||||
| 22 | W10292870 | Shield, Thermostat |
|
$ 22.16 | |||||
| 23 | W10877094 | Shield, Tub Sound (Replaces: W10796452) |
|
$ 210.27 | |||||
| 24 | W10796046 | Support Assembly, Rear |
|
- | |||||
| 25 | W10300703 | Bracket, Thermostat |
|
$ 18.44 | |||||
| 26 | W10195630 | Spacer, Tub/brace (left Hand) |
|
$ 15.58 | |||||
| 27 | W10275523 | Shield, Side Tub |
|
- | |||||
| 28 | 8539404 | Tie, Wire |
|
$ 4.52 | |||||
| 29 | W10703867 | Heater Element Assembly (includes Heater Washer & Nut) (Replaces: W10696509) |
|
Immediately | $ 114.26 | ||||
| 26A | W10195631 | Spacer, Tub/brace (right Hand) |
|
$ 15.47 |
