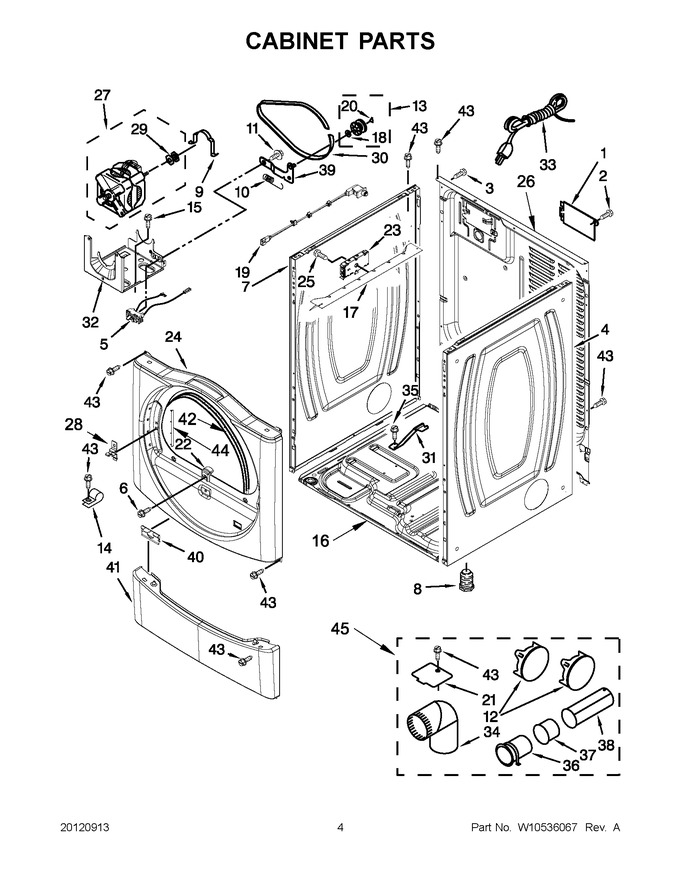

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10819767 | Cover, Terminal Block (Replaces: 8317340) |
|
- | |||||
| 2 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 3 | W10850756 | Panel, Side (r.h.) (white) (Replaces: 8533974) |
|
$ 8.20 | |||||
| 4 | W10542714 | White (Replaces: 8565048) |
|
$ 350.58 | |||||
| 5 | W10847984 | Switch, Broken Belt (Replaces: W10411936) |
|
Immediately | $ 26.90 | ||||
| 6 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 7 | W10542714 | Panel, Side (l.h.) (white) (Replaces: 8565054) |
|
$ 350.58 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | WPW10404617 | Plug, Multivent (Replaces: 49252) |
|
$ 75.58 | |||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | 3978776 | Bracket, Gas Pipe |
|
- | |||||
| 15 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 16 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 365.36 | |||||
| 17 | WP8563727 | Bracket, Control (Replaces: 8563727) |
|
$ 179.69 | |||||
| 18 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 7.55 | ||||
| 19 | W10318609 | Door Switch Assembly |
|
$ 75.64 | |||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | W10819767 | Cover, Terminal Block (Replaces: 8317339) |
|
- | |||||
| 22 | 8580015 | Ramp, Door |
|
$ 88.24 | |||||
| 23 | WPW10450081 | Control Board (Replaces: W10450081) |
|
Immediately | $ 347.72 | ||||
| 24 | 8580257 | Panel, Front (white) |
|
$ 124.76 | |||||
| 25 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 26 | 8565059 | Panel, Rear |
|
$ 244.90 | |||||
| 27 | 279787 | Motor, Assembly 60 Hz. (Replaces: W10317045) |
|
Immediately | $ 235.65 | ||||
| 28 | WP8565122 | Strike, Door (Replaces: 8565122) |
|
Immediately | $ 8.65 | ||||
| 29 | W10837625 | Pulley, Motor (Replaces: W10402907) |
|
Immediately | $ 12.77 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 31 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 32 | W11481730 | Bracket, Motor Mounting (Replaces: W10242878) |
|
Immediately | $ 94.84 | ||||
| 33 | W11222083 | Cord, Power (Replaces: W10440461) |
|
$ 126.62 | |||||
| 34 | WPW10416072 | Elbow (Replaces: 49026) |
|
$ 28.16 | |||||
| 35 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 36 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 3395532) |
|
$ 95.95 | |||||
| 37 | WPW10331278 | Exhaust Pipe (short) (Replaces: 3395534) |
|
$ 82.90 | |||||
| 38 | WP8563749 | Exhaust Pipe (long) (Replaces: 3395535) |
|
$ 93.24 | |||||
| 39 | W10837240 | Bracket, Idler (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 40 | W11295573 | Clip, Toe Panel (Replaces: 8519459) |
|
$ 22.17 | |||||
| 41 | WP8540621 | Toe Panel (white) (Replaces: 8540621) |
|
$ 189.38 | |||||
| 42 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 43 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 44 | W10085210 | Label, Hinge Hole (white) |
|
$ 85.03 | |||||
| 45 | WPW10131132 | Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey) (Replaces: W10331132) |
|
$ 75.81 | |||||
| NI | 49621 | Foot-optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
