SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Burner Assembly


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

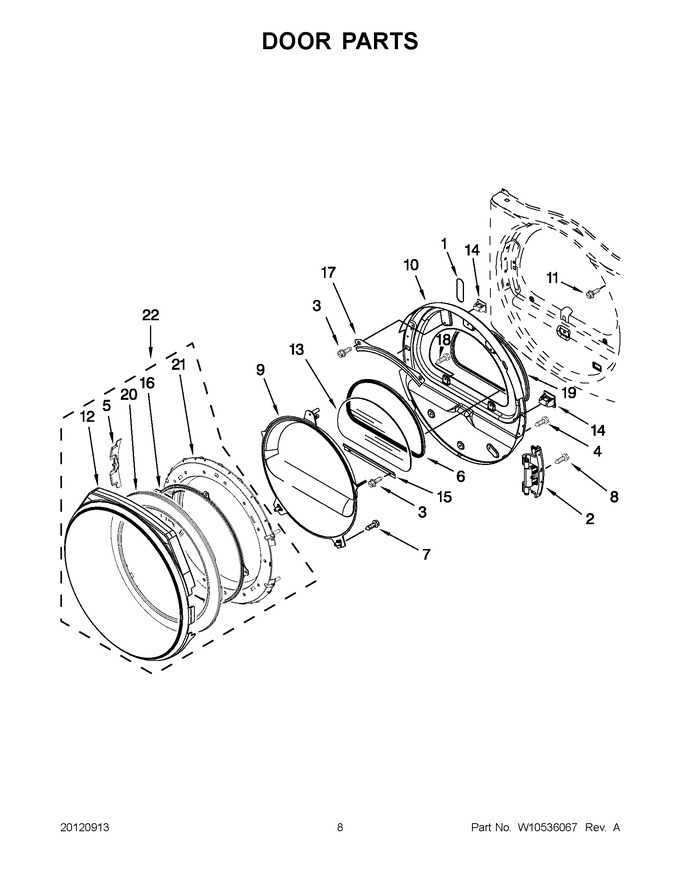

1	WPW10256915		Label, Hinge Hole (white)   (Replaces: W10256915)				$ 82.07
2	WPW10304672		Assembly, Door Hinge   (Replaces: W10304672)			Immediately	$ 232.48
3	WP3373329		Screw   (Replaces: 3393258)				$ 8.52
4	W11116979		Screw   (Replaces: 8534044)				$ 13.76
5	W10215766		Door Trim, Hinge Cover (white)				$ 26.09
6	W11706993		Seal, Window   (Replaces: 8579663)				$ 28.22
7	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
8	WPW10159996		Screw,   (Replaces: W10159996)				$ 8.52
9	W10215761		Screen, Door				$ 59.51
10	W11690171		Inner Door Assembly   (Replaces: W10363674)				$ 204.49
11	WP355515		Screw   (Replaces: 355515)				$ 8.48
12	W10215757		Door, Outer Ring (white)				$ 95.49
13	WPW10286878		Window   (Replaces: W10286878)				$ 274.76
14	279570		Assembly, Door Catch   (Replaces: 690081)			Immediately	$ 8.89
15	W10822054		Retainer, Lower Window   (Replaces: 8519354)			Immediately	$ 18.01
16	W10431338		Door		Appelez-nous	-
17	8519356		Retainer-window (upper)		Appelez-nous	-
18	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.55
19	WPW10163915		Door Seal   (Replaces: W10163915)			Immediately	$ 87.42
20	W10319106		Trim-door Inner Ring (not Serviceable Separately, Order Item. 22)		Appelez-nous	-
21	W10215764		Door, Intermediate Stationary				$ 97.85
22	W10488660		Door, Outer (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
