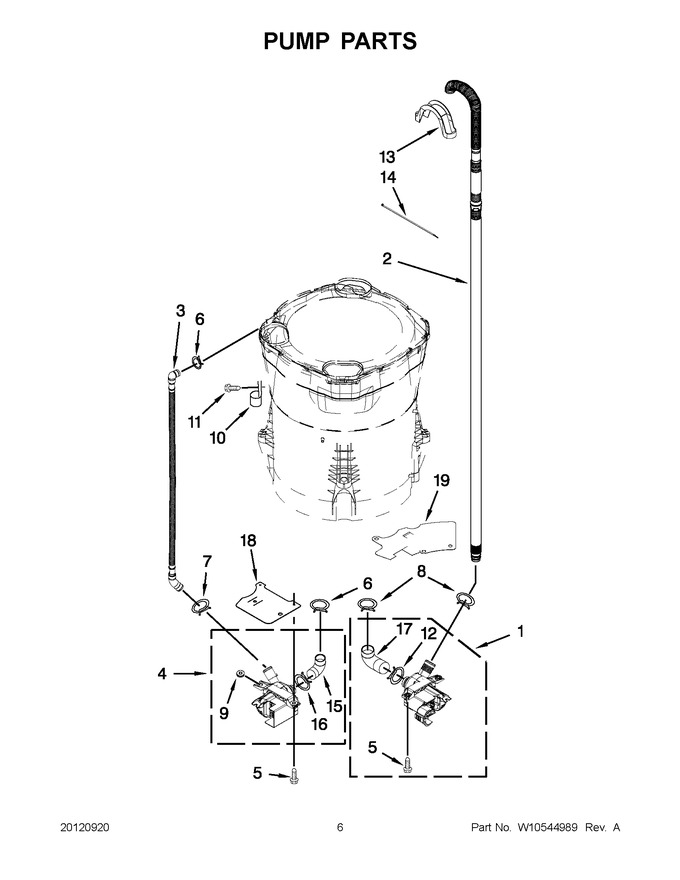

03 - Pump Parts
04 - Control Panel Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10403802 | Pump Assembly, Drain (Replaces: W10403802) |
|
Immediately | $ 334.49 | ||||
| 2 | WPW10363893 | Hose, Drain (Replaces: W10363893) |
|
$ 65.82 | |||||
| 3 | WPW10363892 | Hose, Recirc (Replaces: W10363892) |
|
$ 35.26 | |||||
| 4 | WPW10403803 | Pump Assembly, Recirc (Replaces: W10403803) |
|
$ 325.43 | |||||
| 5 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 8.39 | |||||
| 6 | WP285655 | Clamp, Drain Hose (Replaces: 370449) |
|
Immediately | $ 8.81 | ||||
| 7 | WP8269146 | Clamp, Hose (Replaces: 8269146) |
|
$ 8.59 | |||||
| 8 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 9 | 8182771 | Grommet, Pump Mounting |
|
- | |||||
| 10 | 8534021 | Clamp, Recirc Hose Retainer |
|
$ 8.85 | |||||
| 11 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.80 | ||||
| 12 | WP285655 | Clamp, Drain Pump Hose (Replaces: 8182768) |
|
Immediately | $ 8.81 | ||||
| 13 | WP8576642 | Retainer, Drain Hose (Replaces: 8576642) |
|
$ 98.20 | |||||
| 14 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 8.30 | |||||
| 15 | WP8182769 | Hose, Recirc Pump (Replaces: 8182769) |
|
$ 41.15 | |||||
| 16 | WP3367052 | Clamp, Recirc Pump Hose (Replaces: 8182770) |
|
$ 9.10 | |||||
| 17 | WP8182767 | Hose, Drain Pump (Replaces: 8182767) |
|
$ 26.37 | |||||
| 18 | 8578572 | Shield, Recirc Pump |
|
$ 119.37 | |||||
| 19 | 8578925 | Shield, Drain Pump |
|
- |
