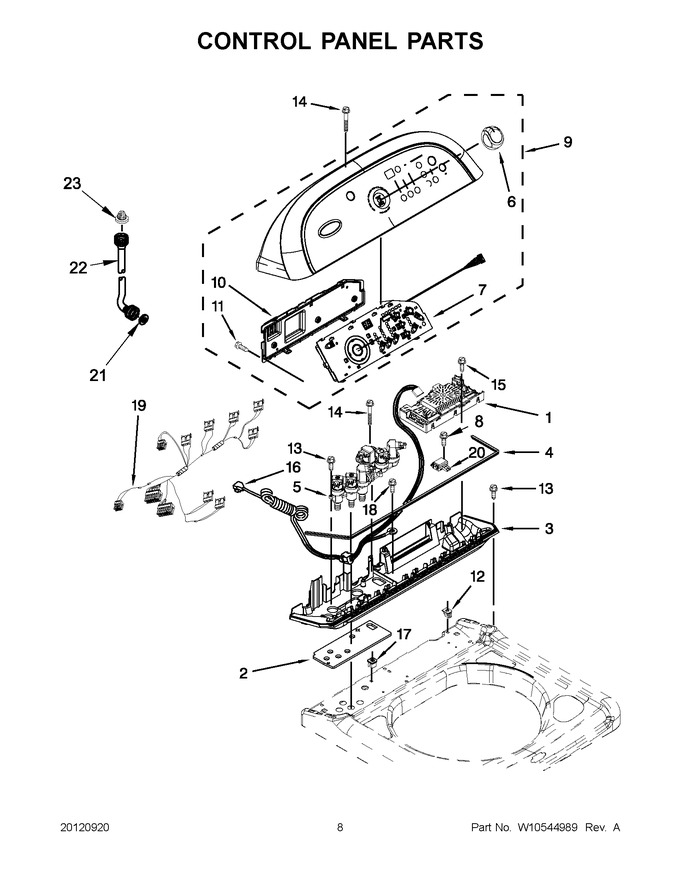

01 - Top And Cabinet Parts
02 - Motor, Basket And Tub Parts
03 - Pump Parts
04 - Control Panel Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10505452 | Control Unit Assembly, Machine & Motor |
|
- | |||||
| 2 | W10130502 | Gasket, Valve Tray |
|
$ 19.43 | |||||
| 3 | 8578550 | Tray Assembly, Console (includes Items 2 & 4) (white) |
|
$ 45.19 | |||||
| 4 | 8546616 | Gasket, Console/tray |
|
$ 60.11 | |||||
| 5 | W10853723 | Valve, Log (Replaces: W10342320) |
|
Immediately | $ 121.66 | ||||
| 6 | WPW10211335 | Knob, Assembly (Replaces: W10211335) |
|
$ 59.76 | |||||
| 7 | W10394244 | User Interface |
|
$ 262.26 | |||||
| 8 | WP9740849 | Screw (Replaces: 9740849) |
|
$ 7.30 | |||||
| 9 | WPW10491358 | Console (white) (Replaces: W10491358) |
|
$ 310.15 | |||||
| 10 | 8564265 | Cover, Rear- User Interface |
|
$ 142.60 | |||||
| 11 | WP4449745 | Screw (Replaces: W10003770) |
|
$ 7.98 | |||||
| 12 | W10022060 | Nut, Push In |
|
- | |||||
| 13 | WPW10052600 | Screw (Replaces: W10052600) |
|
$ 7.30 | |||||
| 14 | 8565324 | Screw |
|
$ 14.05 | |||||
| 15 | W10002710 | Screw |
|
- | |||||
| 16 | W10761002 | Cord, Power (Replaces: W10420367) |
|
$ 148.13 | |||||
| 17 | 98460 | Nut, Push In |
|
$ 12.07 | |||||
| 18 | WP3351614 | Screw (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 19 | W10404420 | Upper Harness |
|
- | |||||
| 20 | WPW10346406 | Power Supply (Replaces: W10346406) |
|
$ 319.97 | |||||
| 21 | WP16123 | Washer, Inlet Hose (Replaces: W10242307) |
|
$ 8.16 | |||||
| 22 | WP89503 | Hose, Water Inlet (hot Water) (Replaces: W10194209) |
|
Immediately | $ 24.09 | ||||
| 22 | WP89503 | Hose, Water Inlet (cold Water) (Replaces: W10194208) |
|
Immediately | $ 24.09 | ||||
| 23 | 285452A | Washer, Filter (Replaces: 353362) |
|
Immediately | $ 9.69 |
