SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)

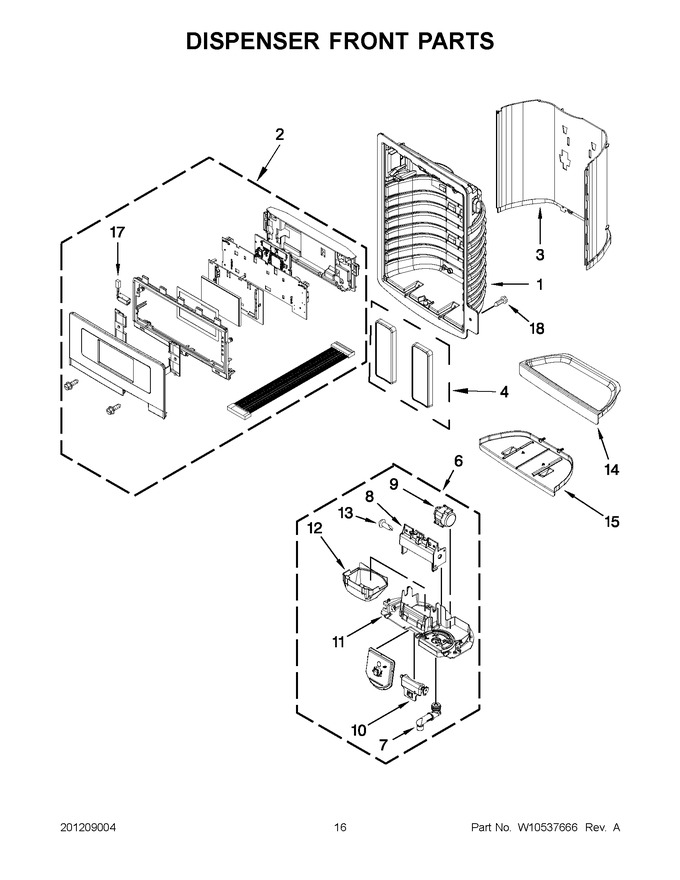

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11184112		Assembly, Ui   (Replaces: W10337911)				$ 387.36
3	W11045978		False, Wall, Dispenser (grey)   (Replaces: W10299897)				$ 86.03
4	WPW10368730		Pad Assembly, Water & Ice   (Replaces: W10368730)			Immediately	$ 304.26
6	WPW10353552		Assembly, Seperator   (Replaces: W10353552)				$ 166.29
7	W11227371		Assembly, Spigot Body   (Replaces: 2316647)				$ 129.89
8	W10174827		Bracket, Ice Door				$ 72.78
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 102.48
10	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 39.86
11	W10278987		Separator		Appelez-nous	-
12	WPW10435760		Guide-ice   (Replaces: W10339578)				$ 22.80
13	W10174818		Clip Motor Coupling		Appelez-nous	-
14	W11192301		Tray-dispenser (stainless)   (Replaces: W10299895)				$ 62.69
15	WPW10267863		Slide Tray, Dispenser (grey)   (Replaces: W10267863)				$ 69.73
17	W11290115		Assembly, Led   (Replaces: W10238083)				$ 80.43
18	WPW10273971		Screw   (Replaces: W10273971)			Immediately	$ 7.19
