SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts

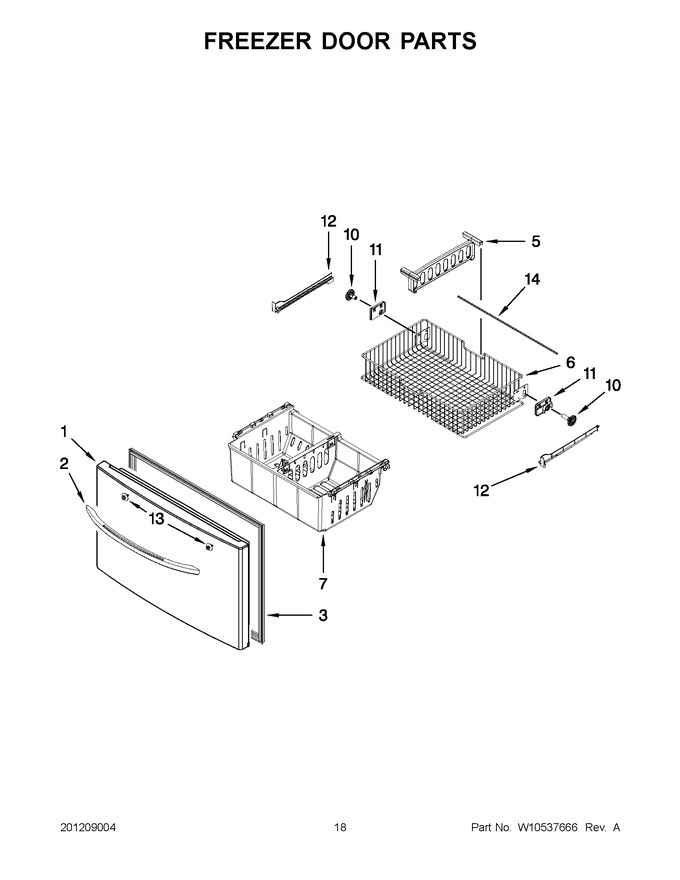

09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977863F		Door, Freezer (sparkle Steel)		Appelez-nous	-
2	W10223025K		Handle, Door (stainless)				$ 85.40
3	WPW10714545		Gasket, Door (grey)   (Replaces: W10443322)				$ 308.19
5	W10146439		Divider, Upper Basket				$ 31.10
6	W11218042		Basket, Upper   (Replaces: W10348249)				$ 193.74
7	WPW10293682		Bin, Lower   (Replaces: W10293682)				$ 172.55
10	WPW10474716		Spur, Gear (left Hand)   (Replaces: W10474716)			Immediately	$ 30.88
10	WPW10474715		Spur, Gear (right Hand)   (Replaces: W10474715)			Immediately	$ 31.20
11	W10348260		Mount, Gear (right Hand)				$ 85.62
11	W10348259		Mount, Gear (left Hand)				$ 85.59
12	W11489993		Rack, Side (left Hand)   (Replaces: W10516603)				$ 22.34
12	W11489994		Rack, Side (right Hand)   (Replaces: W10516602)				$ 22.34
13	WPW10288153		Screw   (Replaces: W10288153)			Immediately	$ 8.69
14	W11173556		Shaft, Rack   (Replaces: 12812904WD)				$ 30.84

    View Diagram in Separate Window       Print Part List
