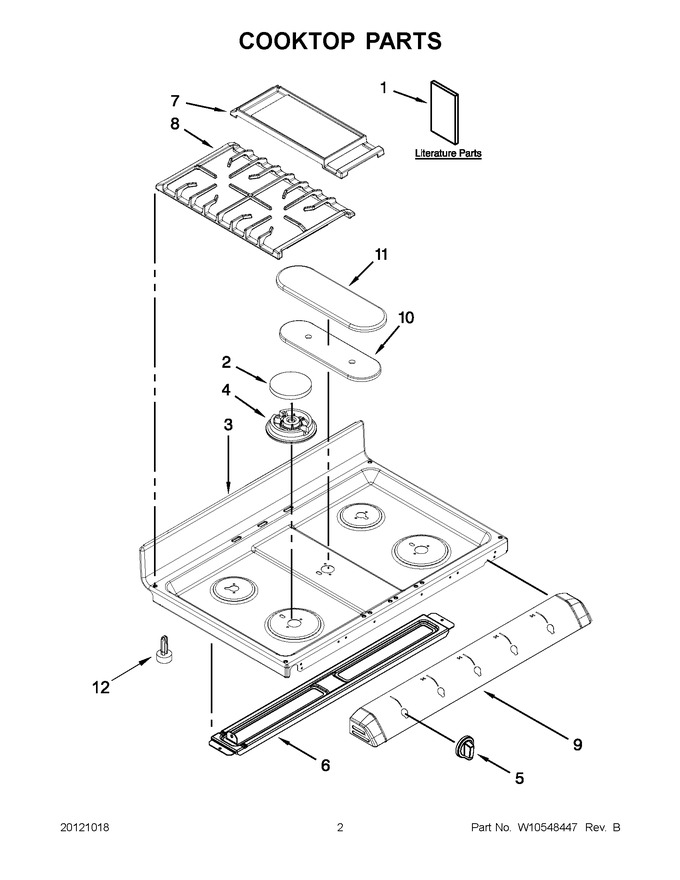

01 - Cooktop Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Manifold Parts
03 - Manifold Parts

Diagram for 04 - Chassis Parts
04 - Chassis Parts

Diagram for 05 - Upper Door Parts
05 - Upper Door Parts

Diagram for 06 - Lower Door Parts
06 - Lower Door Parts

Diagram for 07 - Internal Oven Parts
07 - Internal Oven Parts

Diagram for 08 - Optional Parts (not Included)
08 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10065852 Tips, Safer Cooking (french) Appelez-nous -
1 W10430932 Owners Manual Appelez-nous -
1 W10526071 Instructions, Installation Appelez-nous -
1 W10311752 Tech Sheet Appelez-nous -
1 9762761 Tips, Safer Cooking (english) Appelez-nous -
2 WPW10299236 Kit, Burner Cap   (Replaces: W10299236) In-Stock Immediately $ 225.49

3 W10401393 Cooktop (stainless)   (Replaces: W10330921) Special Order $ 437.46

3 W10336331 Cooktop (white)   (Replaces: W10260170) Special Order $ 418.08

3 W10336330 Cooktop (black)   (Replaces: W10260169) Special Order $ 420.07

4 WPW10336094 Burner Head (center)   (Replaces: W10336094) Special Order $ 227.81

4 WPW10406243 Burner Head, Auxiliary (6k) (left Rear & Right Rear)   (Replaces: 8286181) In-Stock Immediately $ 39.08

4 WPW10406878 Burner Head, Ultra Rapid (17k) (left Front)   (Replaces: 8286183) Special Order $ 107.48

4 WPW10406797 Burner Head, Rapid (12k) (right Front)   (Replaces: 8286182) Special Order $ 92.91

5 W10295130 Knob, Control (black) Special Order $ 46.45

5 WPW10295131 Knob, Control (stainless)   (Replaces: W10295131) In-Stock Immediately $ 23.16

5 WPW10290522 Knob, Control (white)   (Replaces: W10290522) Special Order $ 44.71

6 W10518258 Bracket, Cooktop Support   (Replaces: W10364218) Appelez-nous -
7 W10311218 Griddle Special Order $ 87.90

8 WPW10260069 Kit, Grate   (Replaces: W10260069) Special Order $ 339.91

9 WPW10488872 Panel, Manifold (white)   (Replaces: W10284715) Special Order $ 361.75

9 W10284717 Panel, Manifold (stainless) Special Order $ 127.17

9 W10284716 Panel, Manifold (black) Appelez-nous -
10 WPW10333445 Base, Burner Cap (fish Burner Only)   (Replaces: W10333445) Special Order $ 110.05

11 W10171137 Kit, Burner Cap (fish Burner Only) (wetstone) Special Order $ 116.61

11 WPW10171140 Kit, Burner Cap (fish Burner Only) (black)   (Replaces: W10171140) Special Order $ 168.47

12 W11189172 Glide, Main Top   (Replaces: 8016P022-60) In-Stock Immediately $ 17.61


    View Diagram in Separate Window     Print Icon   Print Part List
