Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319111 Support, Backguard (black, Right) Special Order $ 43.80

1 W10319110 Support, Backguard (white, Left) Special Order $ 95.95

1 W10319112 Support, Backguard (white, Right) Special Order $ 93.79

1 W10319109 Support, Backguard (black, Left) Special Order $ 92.84

2 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

3 WPW10424185 Console (stainless)   (Replaces: W10424185) Special Order $ 380.92

3 W10424186 Console (black) Appelez-nous -
3 W10424187 Console (white) Appelez-nous -
4 W11233072 Screw   (Replaces: 7101P634-60) In-Stock Immediately $ 14.72

5 W10365423 Electric, Control Mrc2 Appelez-nous -
6 W10295112 Assembly, Membrane Appelez-nous -
7 W10278697 Shield, Vent In-Stock Immediately $ 183.33

8 WP74003976 Screw   (Replaces: 7101P500-60) Special Order $ 7.55

9 W10296773 Cover, Backguard Special Order $ 194.52

10 W11684874 Insualtion, Wire Cover   (Replaces: W10309232) Special Order $ 35.56

11 WPW10318787 Connector, Flex   (Replaces: W10318787) Special Order $ 119.94

12 WPW10292689 Cover, Wire Filler   (Replaces: W10292689) Special Order $ 95.35

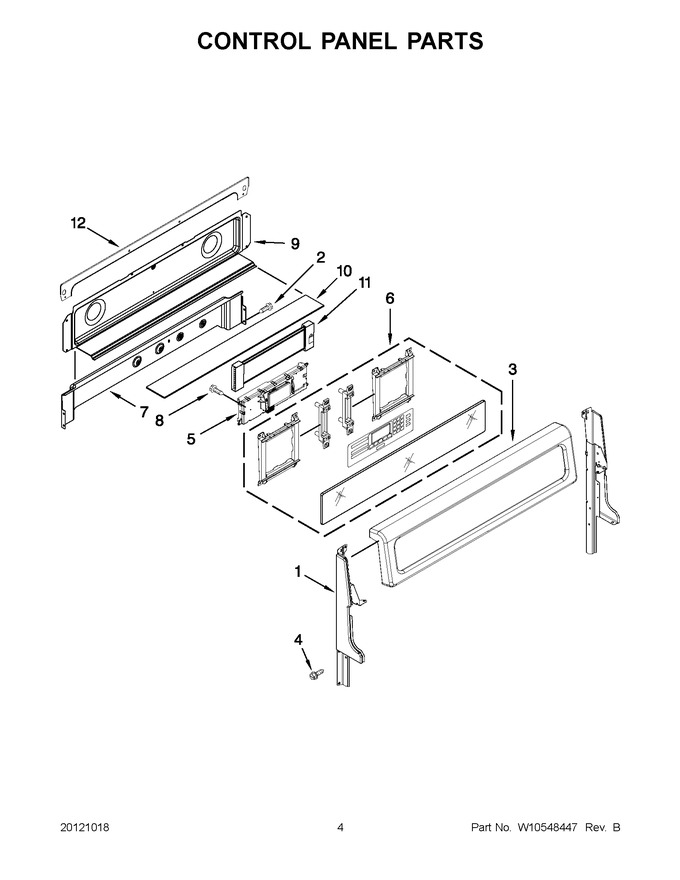

    View Diagram in Separate Window     Print Icon   Print Part List
