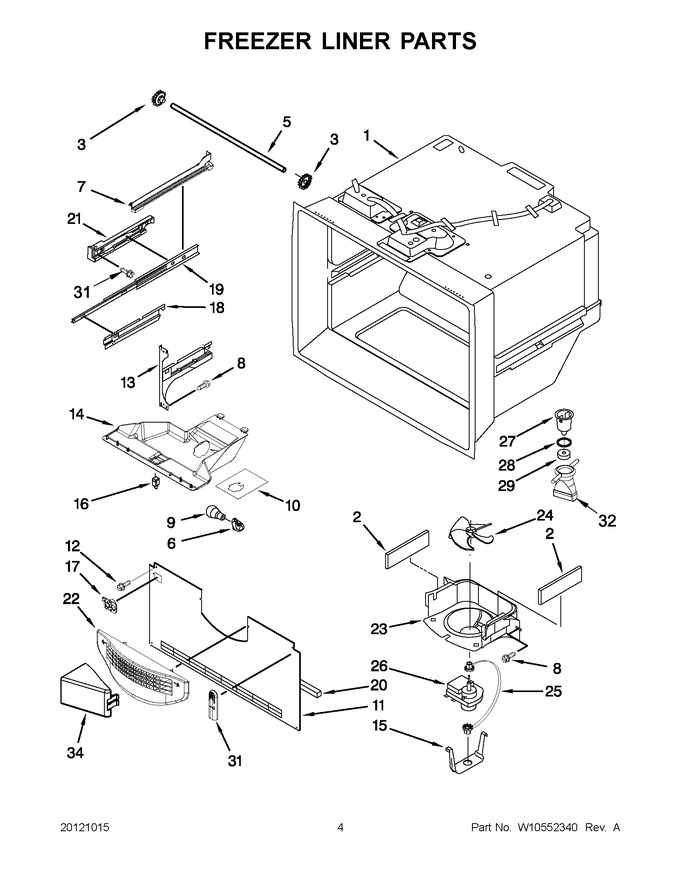

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 8.06 | ||||
| 3 | 12002497 | Gear |
|
Immediately | $ 22.51 | ||||
| 4 | W10157765 | Diverter, Air |
|
$ 92.85 | |||||
| 5 | W10802329 | Shaft-rack (Replaces: 12812901WD) |
|
$ 115.35 | |||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701) |
|
Immediately | $ 13.87 | ||||
| 7 | W11489993 | Rail-side (left Hand) (Replaces: W10516603) |
|
$ 23.46 | |||||
| 7 | W11489994 | Rail-side (right Hand) (Replaces: W10516602) |
|
$ 23.46 | |||||
| 8 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 9 | 4396822 | Bulb, Light (Replaces: W10311527) |
|
Immediately | $ 13.58 | ||||
| 10 | W11469652 | Housing, Foil (Replaces: W10277466) |
|
$ 23.29 | |||||
| 11 | WPW10308414 | Cover, Evaporator (Replaces: W10308414) |
|
$ 246.54 | |||||
| 12 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 8.43 | ||||
| 13 | WPW10330993 | Bracket, Door (right Hand) (Replaces: W10330993) |
|
$ 166.09 | |||||
| 13 | WPW10330991 | Bracket, Door (left Hand) (Replaces: W10330991) |
|
$ 164.31 | |||||
| 14 | WPW10277025 | Module, Light (Replaces: W10277025) |
|
$ 134.40 | |||||
| 15 | 13058002 | Clip, Evaporator Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 37.30 | ||||
| 17 | W10485986 | Guide, Waterline |
|
Immediately | $ 12.95 | ||||
| 18 | WPW10280613 | Cradle-basket (right Hand) (Replaces: W10280613) |
|
$ 92.15 | |||||
| 18 | WPW10280608 | Cradle-basket (left Hand) (Replaces: W10280608) |
|
$ 92.15 | |||||
| 19 | W11658402 | Slide, Door (Replaces: W10488000) |
|
Immediately | $ 127.51 | ||||
| 20 | A3189394 | Gasket, Bottom |
|
$ 28.74 | |||||
| 21 | WPW10284685 | Adapter, Slide (right Hand) (Replaces: W10284685) |
|
$ 42.15 | |||||
| 21 | WPW10284684 | Adapter, Slide (left Hand) (Replaces: W10284684) |
|
Immediately | $ 41.87 | ||||
| 22 | WPW10175909 | Grille, Freezer Air (Replaces: 13024803) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evaporator (Replaces: 13057901) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | W11690160 | Grommet, Fan Motor (Replaces: W10150583) |
|
$ 8.31 | |||||
| 26 | W11024089 | Evaporator, Motor (Replaces: 13062901) |
|
Immediately | $ 58.74 | ||||
| 27 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 51.50 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 11.47 | |||||
| 29 | WPB8381501 | Gasket, Drain (Replaces: B8381501) |
|
$ 7.78 | |||||
| 30 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 8.21 | |||||
| 31 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 8.55 | ||||
| 32 | W10619951 | Extension, Drain Tube (Replaces: W10309238) |
|
Immediately | $ 42.39 |
